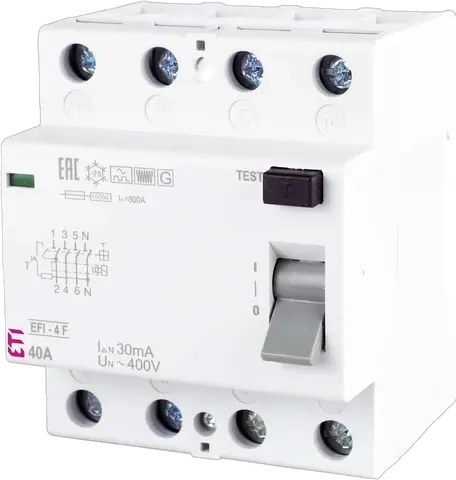

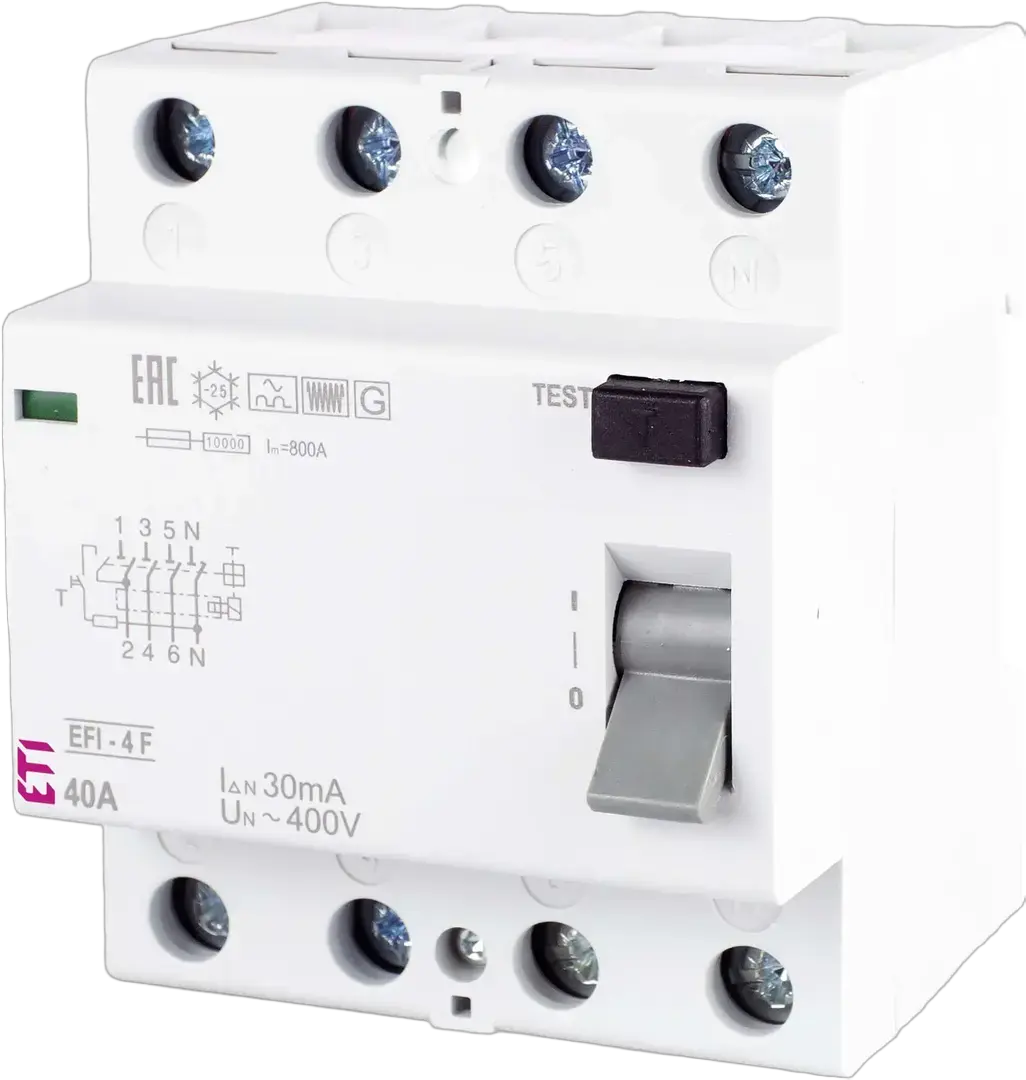

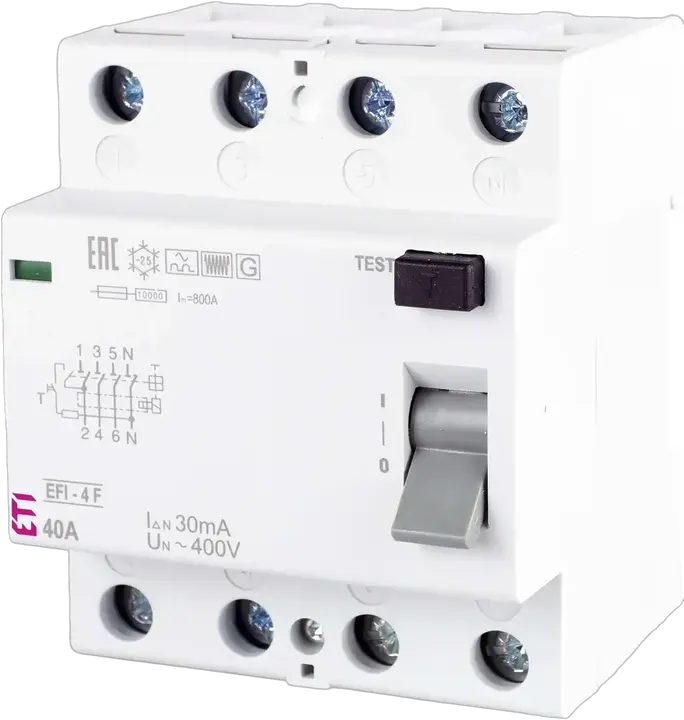

EFI-4 F 40/0.03 RCCB
- ETI Code:
- 002062529
- Application:
- IEC/EN 61008-1
- Rated residual operating current IDn:
- 30 A
- Rated residual current:
- 0.03 A
- Residual current type:
- F
- Rated current:
- 40 A
- Depth:
- 70 mm
- Type of Installation:
- TH 35
- Number of poles:
- 4
- Rated conditional short-circuit current Inc:
- 10 kA
- Tripping time:
- Short Time Delay
- Rated AC voltage:
- 400 V
- Rated cross section:
- 1-25 mm²
- Standards:
- IEC/EN 61008-1
- IP rating:
- IP20
21 Logistics
Product
- Net weight of the product
- 0.316 kg
- Net width
- 70 mm
- Net height
- 85 mm
- Net depth
- 73.5 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838895879565
- Basic packaging weight
- 0.316 kg
- Basic Packaging Dimensions Height
- 73 mm
- Basic Packaging Dimensions Width
- 72.5 mm
- Basic Packaging Dimensions Depth
- 85.5 mm
- Basic packaging volume
- 0.453 dm³
Transport Packaging
- Transport packaging quantity
- 50 pcs
- EAN code for a transport packaging
- 3838895879572
- Transport packaging weight
- 16.23 kg
- Transport Packaging Dimensions Height
- 155 mm
- Transport Packaging Dimensions Width
- 375 mm
- Transport Packaging Dimensions Depth
- 442 mm
- Transport packaging volume
- 25.691 dm³
- Pallet quantity
- 1,900 pcs
- Customs tariff
- 85362010
21 ETIM
- Rated insulation voltage Ui
- 400 V
- Built-in depth
- 70 mm
- Leakage current type
- F
- Surge current capacity
- 0.25 kA
- Rated impulse withstand voltage Uimp
- 4 kV
- Degree of protection (IP)
- IP20
- Mounting method
- DIN rail
- Rated fault current
- 0.03 A
- Pollution degree
- 2
- Frequency
- 50 Hz
- Number of poles
- 4
- Short-circuit breaking capacity (Icw)
- 10 kA
- Rated voltage
- 400 V
- Rated current
- 40 A
- Width in number of modular spacings
- 4
- Ambient temperature during operating(Min)
- -25 °C
- Connectable conductor cross section solid-core(Min)
- 1 mm²
- Connectable conductor cross section multi-wired(Min)
- 1 mm²
- Connectable conductor cross section solid-core(Max)
- 25 mm²
- Connectable conductor cross section multi-wired(Max)
- 25 mm²
- Ambient temperature during operating(Max)
- 40 °C
