004482005

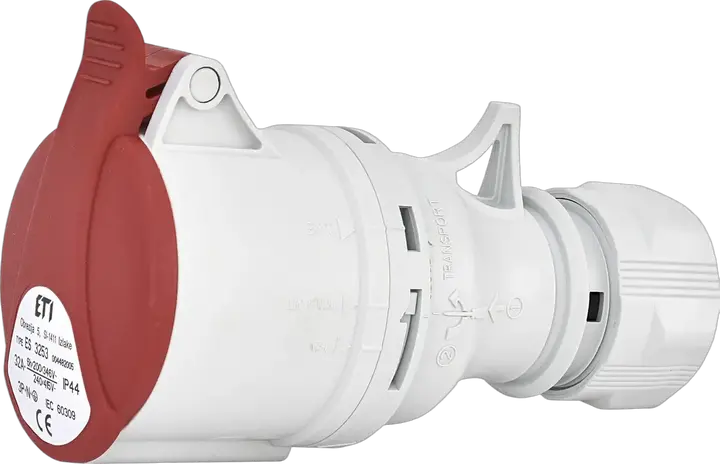

ES 3253 CEE Socket
- ETI Code:
- 004482005
- Function:
- Connecting socket IP44
- Rated AC voltage:
- 400 V
- Rated DC voltage:
- 400 V
- Catalogue Group:
- Sockets IP44
- Rated current:
- 32 A
- Type: socket/plug:
- Connecting sockets
- Number of poles:
- 3+N+PE
- IP rating:
- IP44
4 Documents
11 Logistics
Product
- Net weight of the product
- 0.314 kg
- Stock unit of measure
- pcs
Transport Packaging
- Transport packaging quantity
- 9 pcs
- EAN code for a transport packaging
- 3838895673248
- Transport packaging weight
- 2.84 kg
- Transport Packaging Dimensions Height
- 220 mm
- Transport Packaging Dimensions Width
- 240 mm
- Transport Packaging Dimensions Depth
- 180 mm
- Transport packaging volume
- 9.504 dm³
- Pallet quantity
- 675 pcs
- Customs tariff
- 85366990
10 ETIM
- Degree of protection (IP)
- IP44
- Voltage according to EN 60309-2
- 400 V (50+60 Hz) red
- Cable entry
- Gland nut
- Number of poles
- 5
- IEC-amperage
- 32 A
- Insert direction
- Straight
- Clock hour position
- 6 h
- Connection system
- Screwed terminal
- Identification colour
- Red
- Material
- Plastic
ETIM Classification – Version 9.0
