004482127

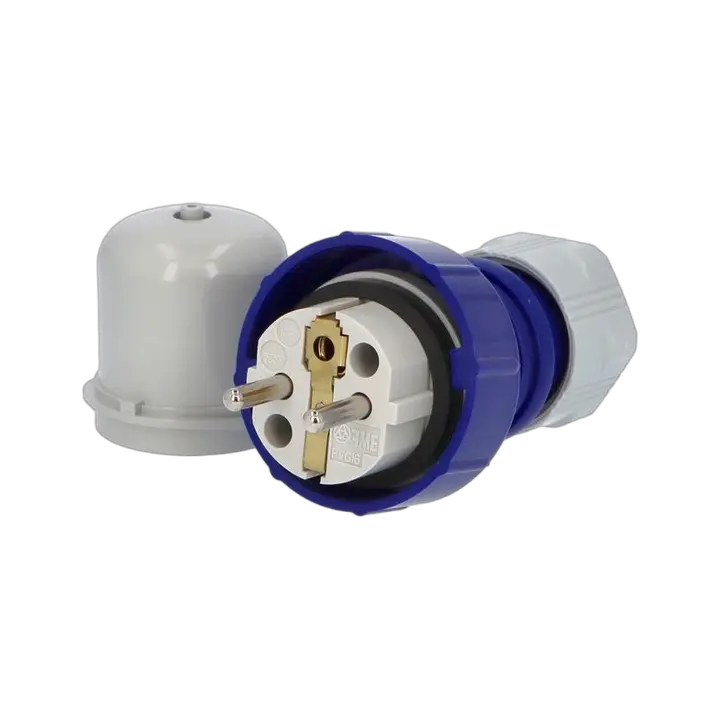

EEVG 16 CEE Socket
- ETI Code:
- 004482127
- Rated AC voltage:
- 230 V
- Rated DC voltage:
- 230 V
- Color:
- Blue
- Type description:
- Plug
- Type: socket/plug:
- Unischuko plug
- Rated current:
- 16 A
- Number of poles:
- 3
- IP rating:
- IP67
- Function:
- Accessories
4 Documents
15 Logistics
Product
- Net weight of the product
- 0.12 kg
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838895675679
- Basic packaging weight
- 0.12 kg
- Basic packaging volume
- 0.56 dm³
Transport Packaging
- Transport packaging quantity
- 14 pcs
- EAN code for a transport packaging
- 3838895675686
- Transport packaging weight
- 1.68 kg
- Transport Packaging Dimensions Height
- 165 mm
- Transport Packaging Dimensions Width
- 315 mm
- Transport Packaging Dimensions Depth
- 150 mm
- Transport packaging volume
- 7.796 dm³
- Pallet quantity
- 1,806 pcs
- Customs tariff
- 85366990
9 ETIM
- Degree of protection (IP)
- IP67
- Construction type
- Built-up device plug
- Material quality
- Thermoplastic
- Suitable for protective contact pin
- Yes
- Number of poles
- 3
- Insert direction
- Straight
- Connection system
- Screwed terminal
- Colour
- Blue
- Material
- Plastic
ETIM Classification – Version 9.0
1 Diagrams
1 Software & drivers
Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
