002471715

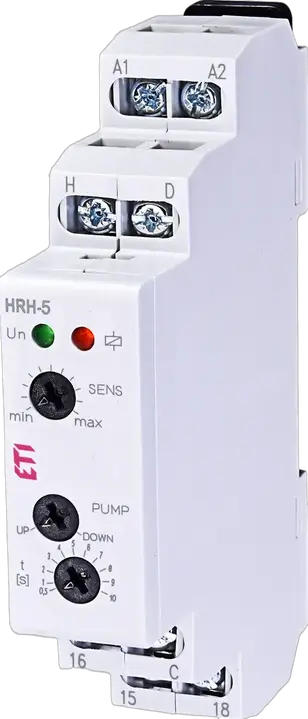

HRH-5 Control relay
- ETI Code:
- 002471715
- Height:
- 90 mm
- Width:
- 18 mm
- Category:
- Level switch HRH-5
- Catalogue Group:
- Fluid level monitoring relay
- Catalogue Subgroup:
- Level switch
- Type description:
- Level switch HRH-5
- Function:
- Monitoring and Control relays
- Supply Voltage:
- 24-240 V
- Type of Control:
- Monitoring levels
- Number of contacts:
- 1
- Voltage type:
- AC/DC
- Maximum load capacity at AC1:
- 2,500 VA
- Rated current:
- 8 A
- Type of contacts:
- 1xCO
- No. of CO contacts:
- 1
- DC rated control supply voltage Uc:
- 24-240 V
7 Documents
18 Logistics
Product
- Net weight of the product
- 0.072 kg
- Net width
- 17.5 mm
- Net height
- 91.3 mm
- Net depth
- 64.26 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838895489160
- Basic packaging weight
- 0.086 kg
- Basic Packaging Dimensions Height
- 25 mm
- Basic Packaging Dimensions Width
- 97 mm
- Basic Packaging Dimensions Depth
- 70 mm
- Basic packaging volume
- 0.17 dm³
Transport Packaging
- Transport packaging quantity
- 8 pcs
- EAN code for a transport packaging
- 3838895494782
- Transport packaging weight
- 0.688 kg
- Transport packaging volume
- 1.6 dm³
- Pallet quantity
- 8,000 pcs
- Customs tariff
- 85364900
27 ETIM
- Max. permitted operate delay time
- 10 s
- Width
- 18 mm
- Response value sensitivity adjustable
- Yes
- Physical measurement principle
- Conductive
- Voltage type (operating voltage)
- AC/DC
- Max. permitted off-delay time
- 10 s
- Voltage type (supply voltage)
- AC/DC
- Min. adjustable off-delay time
- 0.5 s
- Min. adjustable operate delay time
- 0.5 s
- Rated switch current
- 8 A
- Number of inputs for electrodes
- 3
- Depth
- 65 mm
- Type of electric connection
- Screw connection
- Number of contacts as change-over contact
- 1
- Height
- 90 mm
- Operating voltage AC 50 Hz(Min)
- 24 V
- Operating voltage AC 60 Hz(Min)
- 24 V
- Supply voltage AC 60 Hz(Min)
- 24 V
- Supply voltage DC(Min)
- 24 V
- Operating voltage DC(Min)
- 24 V
- Supply voltage AC 50 Hz(Min)
- 24 V
- Supply voltage AC 50 Hz(Max)
- 240 V
- Operating voltage AC 60 Hz(Max)
- 230 V
- Supply voltage DC(Max)
- 240 V
- Operating voltage AC 50 Hz(Max)
- 230 V
- Supply voltage AC 60 Hz(Max)
- 240 V
- Operating voltage DC(Max)
- 230 V
ETIM Classification – Version 9.0
