002470298

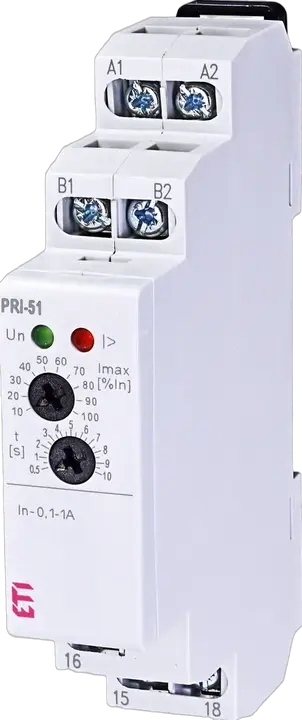

PRI-51/0.1-10 Control relay
- ETI Code:
- 002470298
- Max. breaking capacity at AC1:
- 2,500 A
- Function:
- Monitoring and Control relays
- Supply Voltage:
- 24-240 V
- Number of contacts:
- 1
- Voltage type:
- AC/DC
- Rated current:
- 8 A
- No. of CO contacts:
- 1
7 Documents
21 Logistics
Product
- Net weight of the product
- 0.087 kg
- Net width
- 17.5 mm
- Net height
- 91.3 mm
- Net depth
- 64.26 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838895946496
- Basic packaging weight
- 0.087 kg
- Basic Packaging Dimensions Height
- 25 mm
- Basic Packaging Dimensions Width
- 97 mm
- Basic Packaging Dimensions Depth
- 70 mm
- Basic packaging volume
- 0.17 dm³
Transport Packaging
- Transport packaging quantity
- 10 pcs
- EAN code for a transport packaging
- 3838895946502
- Transport packaging weight
- 0.926 kg
- Transport Packaging Dimensions Height
- 102 mm
- Transport Packaging Dimensions Width
- 284 mm
- Transport Packaging Dimensions Depth
- 75 mm
- Transport packaging volume
- 2.173 dm³
- Pallet quantity
- 3,640 pcs
- Customs tariff
- 85364900
4 ETIM
- Voltage type (operating voltage)
- AC/DC
- Voltage type (supply voltage)
- AC/DC
- Rated switch current
- 8 A
- Type of electric connection
- Clip connection
ETIM Classification – Version 9.0
1 Diagrams
1 Software & drivers
Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
19 Tags
002470298Control relayPRI-51/0.1-10EVE/ETIRELControl equipmentRelaysRelaysCurrent monitoring relayCurrent monitoring relayInternationalAutomation, signaling and control devicesMonitoring and control relays ETIRELVoltage type: AC/DCNumber of contacts: 1No. of CO contacts: 1Function: Monitoring and Control relaysSupply Voltage: 24 V-240 VRated current: 8 A/8 AControl relay Function: Monitoring and Control relays Supply Voltage: 24 V-240 V Number of contacts: 1 Voltage type: AC/DC Rated current: 8 A/8 A No. of CO contacts: 1
