002440310
Obsolete

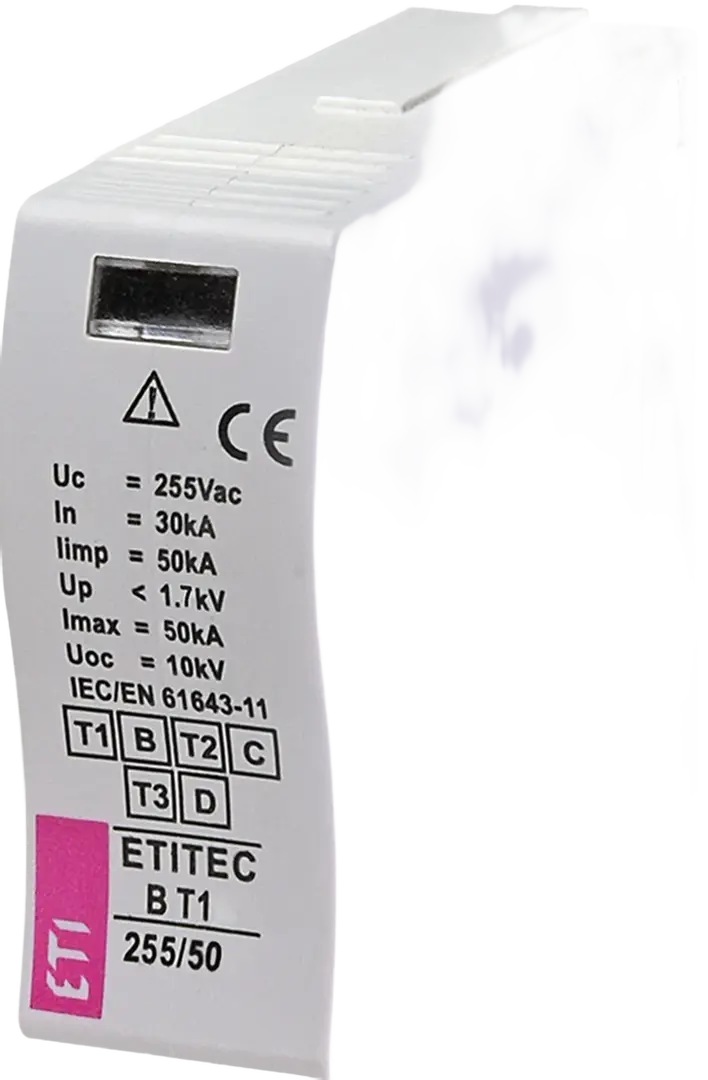

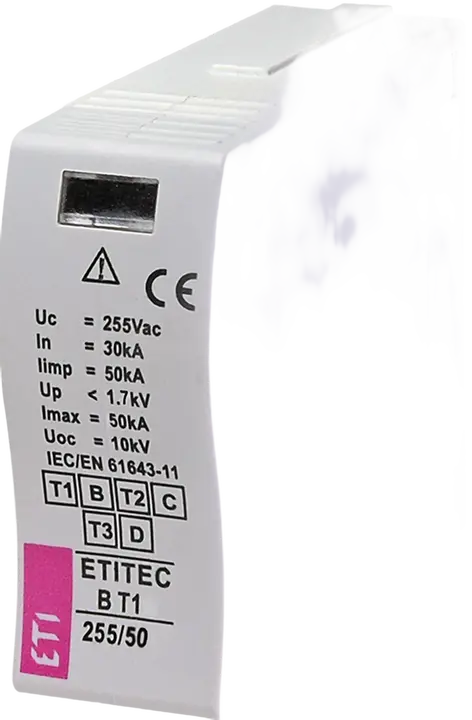

*MOD.ETITEC B T12 255/50 Surge arrester
- ETI Code:
- 002440310
- Rated AC voltage:
- 230 V
- Rated DC voltage:
- 230 V
- Network system:
- TN/TT
- Catalogue Group:
- ETITEC S B
- Installation:
- Home and residental building protection
- IP rating:
- IP20
- Leakage Current:
- Yes
- Applied Technology:
- MOV
- Surge arrester type:
- T1, T2
- Uc Continous Operating Voltage AC:
- 255 V
- Function:
- SPD Module
- To use with:
- ETITEC B T12
- Current type:
- AC
- Iimp(10/350) Impulse Current:
- 50 kA
- Nominal Discharge Current (8/20 μs) In:
- 30 kA
- Max. Discharge current Imax, 8/20:
- 50 kA
14 Logistics
Product
- Net weight of the product
- 70 g
- Net width
- 17.8 mm
- Net height
- 46.6 mm
- Net depth
- 61.5 mm
- Stock unit of measure
- pcs
Transport Packaging
- Transport packaging quantity
- 12 pcs
- EAN code for a transport packaging
- 3838895766704
- Transport packaging weight
- 0.077 kg
- Transport Packaging Dimensions Height
- 62 mm
- Transport Packaging Dimensions Width
- 47 mm
- Transport Packaging Dimensions Depth
- 219 mm
- Transport packaging volume
- 0.638 dm³
- Pallet quantity
- 15,120 pcs
- Customs tariff
- 85363090
13 ETIM
- System configuration TN-C
- Yes
- Nominal voltage AC
- 230 V
- Test class
- Type 1 + 2
- Degree of protection (IP)
- IP20
- Mounting method
- On basic element
- Construction size
- 2 modular spacing
- Lightning impulse current (10/350 µs)
- 100 kA
- System configuration TN-S
- Yes
- System configuration TN
- Yes
- Number of poles
- 1
- System configuration TT
- Yes
- Signalling at the device
- Optical
- Max. continuous voltage AC
- 255 V
ETIM Classification – Version 9.0
