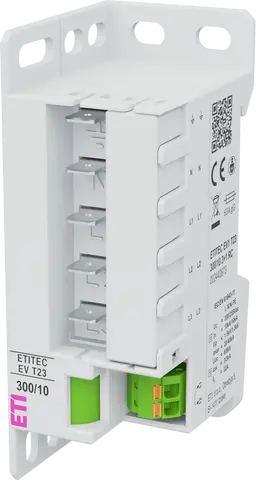

Image of ETITEC EV1 T23 300/10 3+1 RC

ETITEC EV1 T23 300/10 3+1 RC

Class name: Surge arrester
Function: SPD
Surge arrester type: T2, T3
Uc Continous Operating Voltage AC: 300 V
Nominal Discharge Current (8/20 μs) In: 10 kA
Current type: AC
Rated AC voltage: 230 V
Up - Voltage Protection Level: 1.5 kV
Remote signalisation: 1
Leakage Current: 1
Network system: TN/TT
Installation: Home and residental building protection
Built-in depth: 38 mm
IP rating: IP20
Applied Technology: MOV
Catalogue Group: ETITEC EV
Type of Installation: IT mounting plate, TH 35

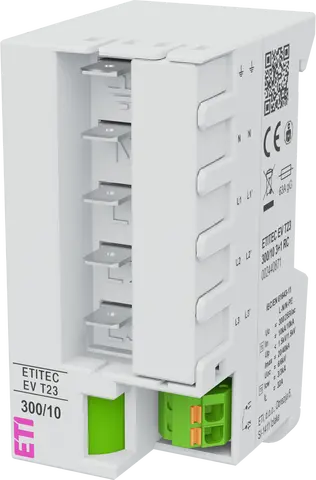

Image of ETITEC EV T23 300/10 3+1 RC

ETITEC EV T23 300/10 3+1 RC

Class name: Surge arrester
Function: SPD
Surge arrester type: T2, T3
Uc Continous Operating Voltage AC: 300 V
Nominal Discharge Current (8/20 μs) In: 10 kA
Current type: AC
Rated AC voltage: 230 V
Up - Voltage Protection Level: 1.5 kV
Remote signalisation: 1
Leakage Current: 1
Network system: TN/TT
Installation: Home and residental building protection
Built-in depth: 38 mm
IP rating: IP20
Applied Technology: MOV
Catalogue Group: ETITEC EV
Type of Installation: TH 35

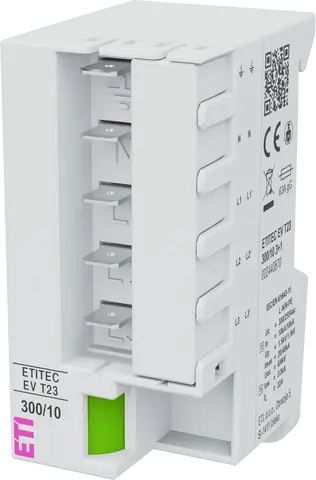

Image of ETITEC EV T23 300/10 3+1

ETITEC EV T23 300/10 3+1

Class name: Surge arrester
Function: SPD
Surge arrester type: T2, T3
Uc Continous Operating Voltage AC: 300 V
Nominal Discharge Current (8/20 μs) In: 10 kA
Current type: AC
Rated AC voltage: 230 V
Up - Voltage Protection Level: 1.5 kV
Leakage Current: 1
Network system: TN/TT
Installation: Home and residental building protection
Built-in depth: 38 mm
IP rating: IP20
Applied Technology: MOV
Catalogue Group: ETITEC EV
Type of Installation: TH 35

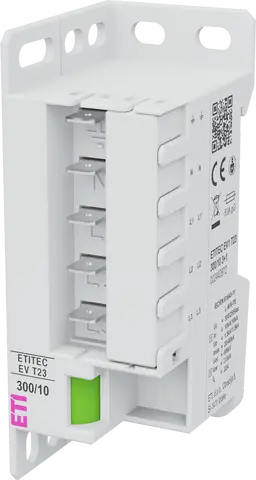

Image of ETITEC EV1 T23 300/10 3+1

ETITEC EV1 T23 300/10 3+1

Class name: Surge arrester
Function: SPD
Surge arrester type: T2, T3
Uc Continous Operating Voltage AC: 300 V
Nominal Discharge Current (8/20 μs) In: 10 kA
Current type: AC
Rated AC voltage: 230 V
Up - Voltage Protection Level: 1.5 kV
Leakage Current: 1
Network system: TN/TT
Installation: Home and residental building protection
Built-in depth: 38 mm
IP rating: IP20
Applied Technology: MOV
Catalogue Group: ETITEC EV
Type of Installation: IT mounting plate, TH 35
