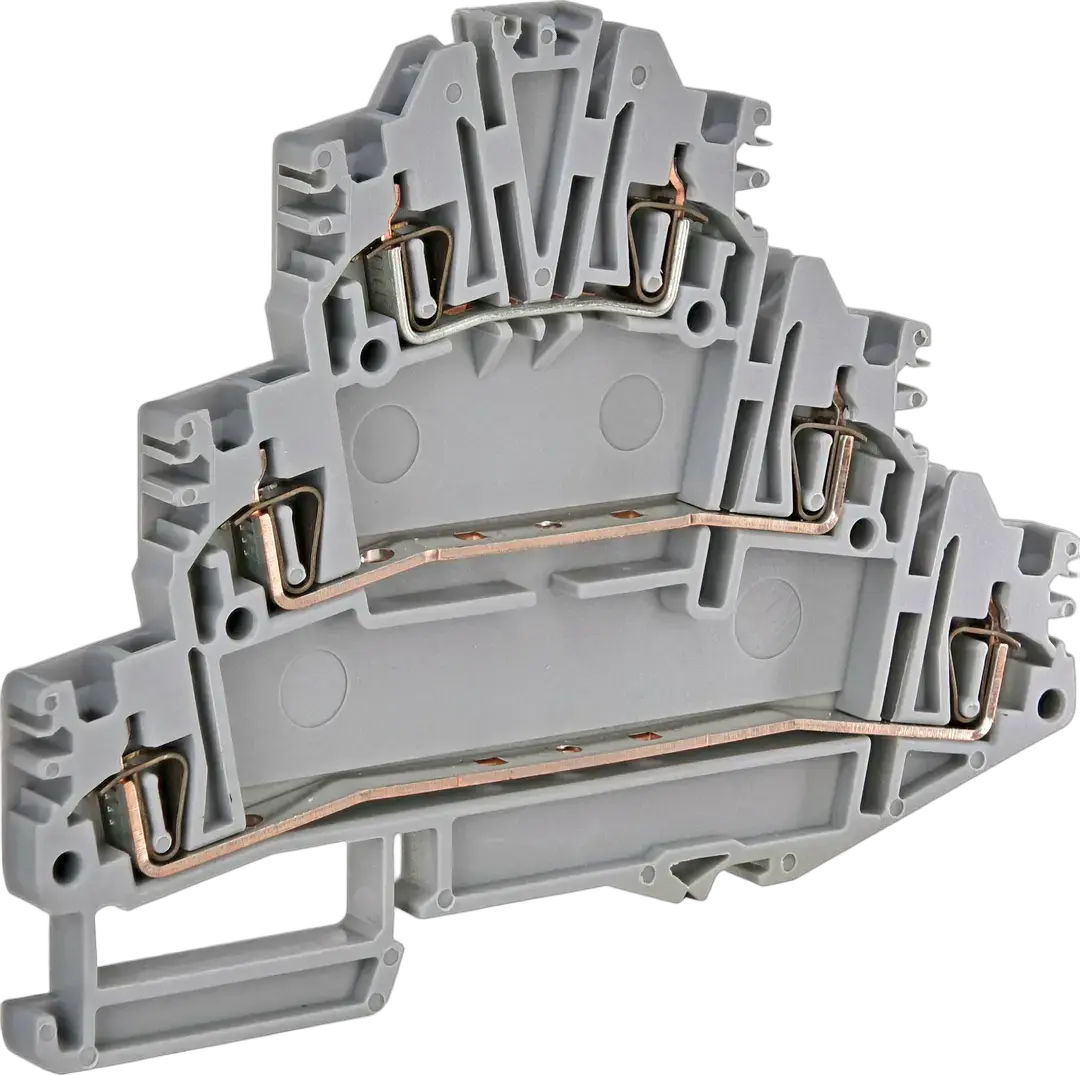

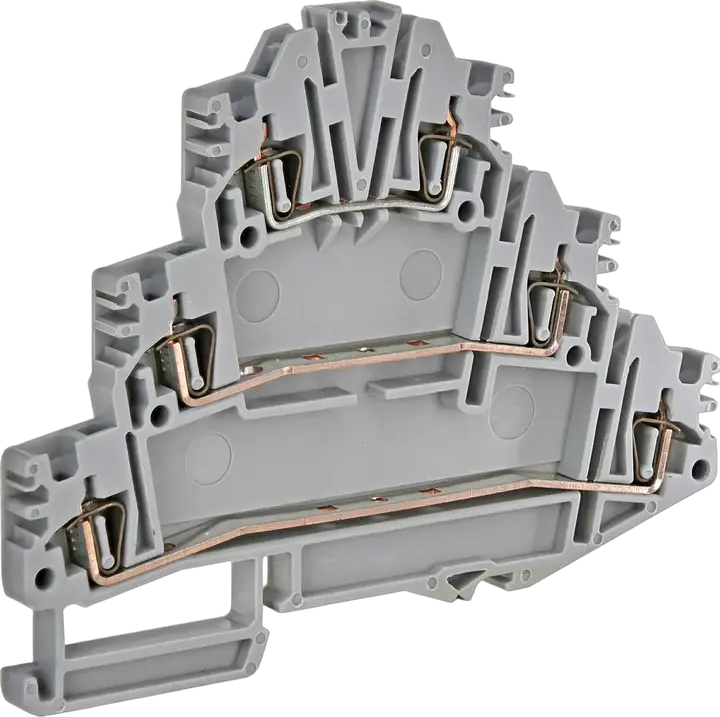

ESP3-HLD.2 Line-up terminal

ETI Code:: 003903186
Rated AC voltage:: 500 V
Rated DC voltage:: 500 V
Catalogue Group:: ES Spring Clamp Terminal Blocks
Type of Installation:: TH 35
Type description:: ES Spring Clamp Terminal Blocks
Level:: Triple
Color:: Grey
Rated cross section:: 2.5 mm²
Rated impulse withstand voltage Uimp:: 8 kV
Max current with rated cross-section:: 24 mm²
Connectable conductor cross section solid-core:: 2-25 mm²
Cross connection:: Yes
End section needed:: Yes

Accessories

Product

EAN code for a single product: 3838895862598
Net weight of the product: 19.2 g
Net width: 5.2 mm
Net height: 95 mm
Net depth: 74.3 mm
Stock unit of measure: pcs

Transport Packaging

Transport packaging quantity: 50 pcs
EAN code for a transport packaging: 3838895789802
Transport packaging weight: 1.075 kg
Transport Packaging Dimensions Height: 90 mm
Transport Packaging Dimensions Width: 290 mm
Transport Packaging Dimensions Depth: 100 mm
Transport packaging volume: 2.9 dm³
Pallet quantity: 17,600 pcs
Customs tariff: 85369010

Explosion-tested version 'Ex e': Yes
Width: 5.2 mm
Material insulation body: Thermoplastic
Rated current In: 24 A
Mounting method: DIN rail (top hat rail) 35 mm
Number of levels: 3
Type of electrical connection 1: Spring clamp connection
Number of clamp positions per level: 2
Closing plate required: Yes
Type of electrical connection 2: Spring clamp connection
Rated voltage: 500 V
Colour: Grey
Height: 75 mm
Inflammability class of insulation material according to with UL94: V0
Connectable conductor cross section solid-core(Min): 0.2 mm²
Connectable conductor cross section multi-wired(Min): 0.2 mm²
Connectable conductor cross section fine-strand with cable end sleeve(Min): 0.2 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Min): 0.2 mm²
Operating temperature(Min): -40 °C
Connectable conductor cross section solid-core(Max): 2.5 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Max): 2.5 mm²
Connectable conductor cross section multi-wired(Max): 2.5 mm²
Operating temperature(Max): 100 °C
Connectable conductor cross section fine-strand with cable end sleeve(Max): 1.5 mm²

ETIM Classification – Version 9.0
