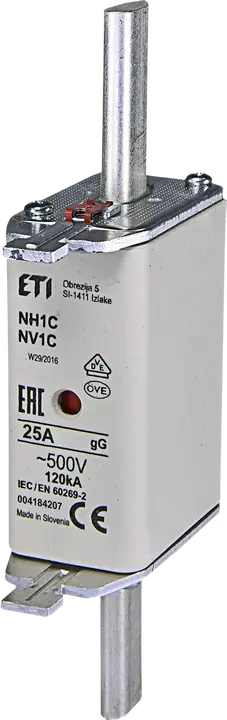

*NH1C gG 40A/500V korr. Fuse link
- ETI Code:
- 004113216
- Fuse type:
- NH
- Size:
- NH1C
- Rated current:
- 40 A
- Time-Current Characteristic:
- gG
- Indicator:
- Combination fuse status indicator
- Rated AC voltage:
- 500 V
- Rated DC voltage:
- 250 V
- Breaking capacity AC:
- 120 kA
- Power dissipation:
- 4.1 W
- Operating joule integral (A2s):
- 14,500
- Prearcing joule integral (A2s):
- 2,900
- Standards:
- IEC 60269-1, IEC 60269-2
- Application:
- For cable protection
22 Logistics
Product
- EAN code for a single product
- 3838400033925
- Net weight of the product
- 225 g
- Net width
- 29.5 mm
- Net height
- 134.9 mm
- Net depth
- 61.75 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 3 pcs
- EAN code for a basic packaging
- 3838895314233
- Basic packaging weight
- 1.95 kg
- Basic Packaging Dimensions Height
- 60 mm
- Basic Packaging Dimensions Width
- 90 mm
- Basic Packaging Dimensions Depth
- 135 mm
- Basic packaging volume
- 0.729 dm³
Transport Packaging
- Transport packaging quantity
- 45 pcs
- EAN code for a transport packaging
- 3838895314240
- Transport packaging weight
- 11 kg
- Transport Packaging Dimensions Height
- 250 mm
- Transport Packaging Dimensions Width
- 235 mm
- Transport Packaging Dimensions Depth
- 295 mm
- Transport packaging volume
- 17.331 dm³
- Pallet quantity
- 2,340 pcs
- Customs tariff
- 85361050
6 ETIM
- Rated switching capacity AC
- 120 kA
- Voltage type
- AC
- Rated voltage AC
- 500 V
- Type of fuse status indicator
- Combination fuse status indicator
- Rated current
- 40 A
- Utilization category
- gG (cable protection/equipment protection)
