004122060

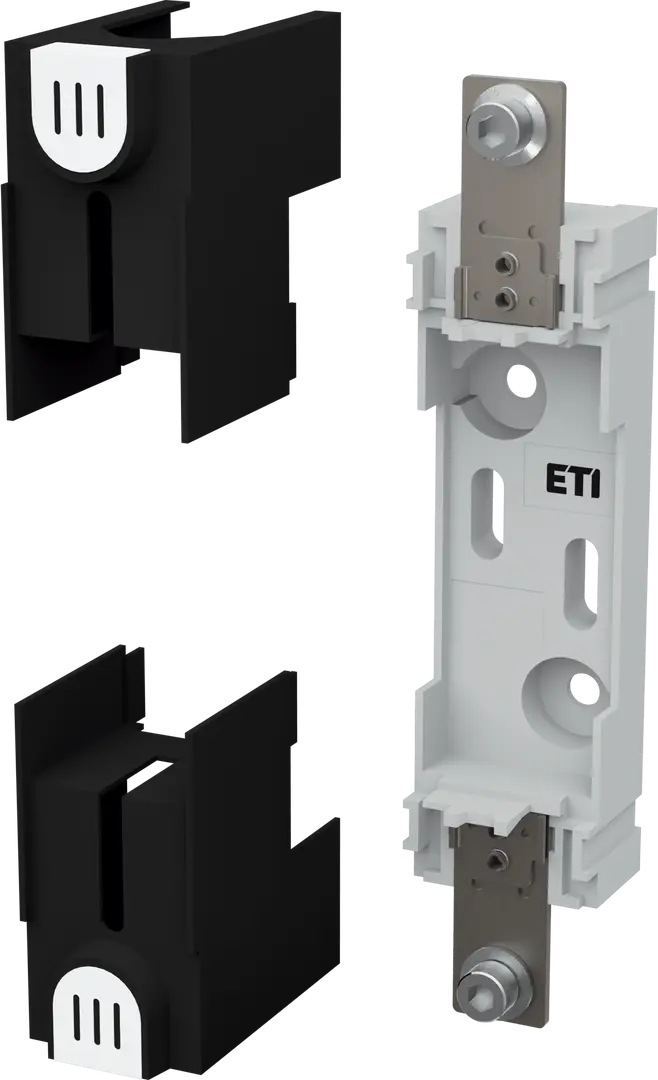

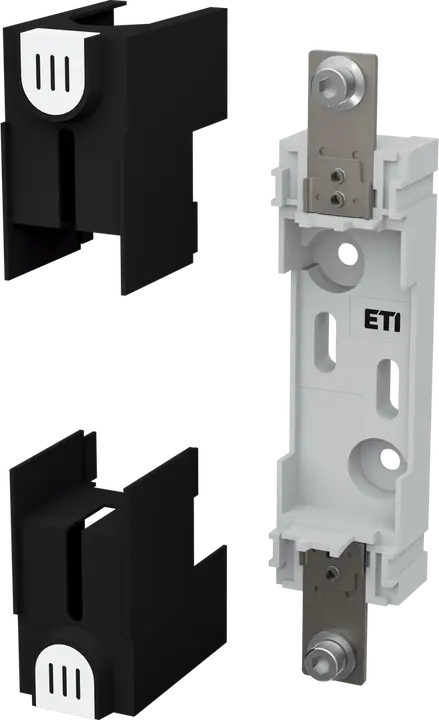

U1XL-1IGZ/1500/H Fuse - base
- ETI Code:
- 004122060
- Size:
- NH1XL
- Number of poles:
- 1
- Rated current:
- 250 A
- Rated AC voltage:
- 1500 V
- Rated DC voltage:
- 1500 V
- Type of Installation:
- Base plate mounting
- Indicator:
- option microswitch
14 Logistics
Product
- Net weight of the product
- 0.58 kg
- Net width
- 59 mm
- Net height
- 102.9 mm
- Net depth
- 301.11 mm
- Stock unit of measure
- pcs
Transport Packaging
- Transport packaging quantity
- 1 pcs
- EAN code for a transport packaging
- 3838895648833
- Transport packaging weight
- 0.583 kg
- Transport Packaging Dimensions Height
- 305 mm
- Transport Packaging Dimensions Width
- 114 mm
- Transport Packaging Dimensions Depth
- 66 mm
- Transport packaging volume
- 2.295 dm³
- Pallet quantity
- 315 pcs
- Customs tariff
- 85389099
5 ETIM
- Mounting method
- Screw-on
- Construction size
- Other
- Number of poles
- 1
- Connection type
- Screwed terminal
- Rated current
- 250 A
ETIM Classification – Version 9.0
