004941504

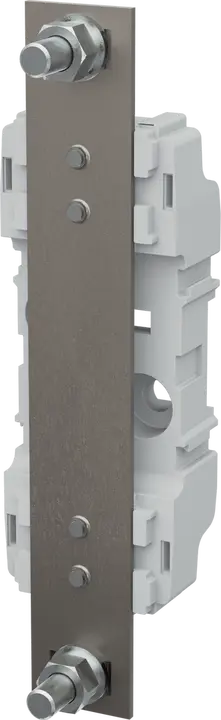

PT 2/0 M10-M10 Neutral terminal
- ETI Code:
- 004941504
- Type description:
- PT - neutral
- Size:
- NH2
- Number of poles:
- 1
- Rated current:
- 400 A
- Rated AC voltage:
- 690 V
- Type of Installation:
- DIN rail mounting / Screw mounting
5 Documents
22 Logistics
Product
- EAN code for a single product
- 3838400041326
- Net weight of the product
- 0.57 kg
- Net width
- 59.8 mm
- Net height
- 225 mm
- Net depth
- 65.5 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 3 pcs
- EAN code for a basic packaging
- 3838895778981
- Basic packaging weight
- 1.85 kg
- Basic Packaging Dimensions Height
- 0.119 m
- Basic Packaging Dimensions Width
- 0.165 m
- Basic Packaging Dimensions Depth
- 0.24 m
- Basic packaging volume
- 0.005 m³
Transport Packaging
- Transport packaging quantity
- 15 pcs
- EAN code for a transport packaging
- 3838895778998
- Transport packaging weight
- 9.705 kg
- Transport Packaging Dimensions Height
- 0.285 m
- Transport Packaging Dimensions Width
- 0.343 m
- Transport Packaging Dimensions Depth
- 0.363 m
- Transport packaging volume
- 0.035 m³
- Pallet quantity
- 15 pcs
- Customs tariff
- 85389099
5 ETIM
- Mounting method
- Screw-on
- Construction size
- NH2
- Number of poles
- 1
- Connection type
- Screwed terminal
- Rated current
- 400 A
ETIM Classification – Version 9.0
1 Diagrams
1 Software & drivers
Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
