001701184

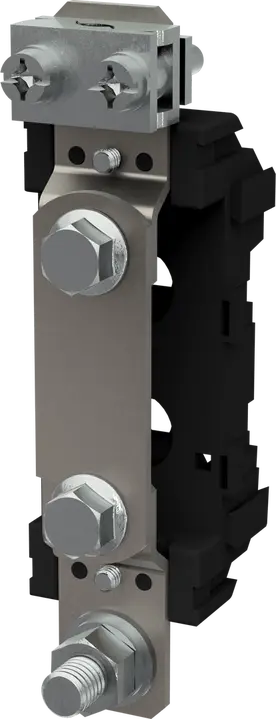

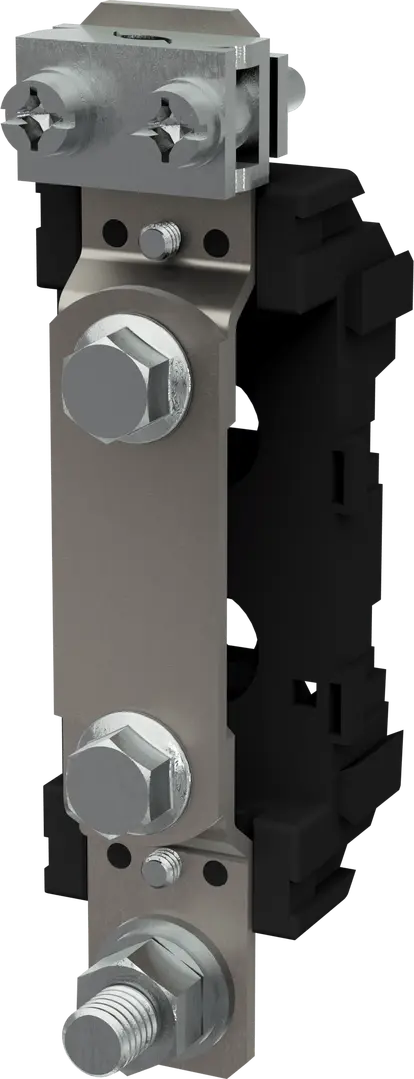

PLNSR-00 D Neutral terminal
- ETI Code:
- 001701184
- Type description:
- PLNS - neutral
- Size:
- NH00
- Number of poles:
- 1
- Rated current:
- 160 A
- Rated AC voltage:
- 690 V
- Type of Installation:
- Base plate mounting
15 Logistics
Product
- EAN code for a single product
- 3838400073167
- Net weight of the product
- 0.14 kg
- Net width
- 36 mm
- Net height
- 120 mm
- Net depth
- 43 mm
- Stock unit of measure
- pcs
Transport Packaging
- Transport packaging quantity
- 5 pcs
- EAN code for a transport packaging
- 3838895664352
- Transport packaging weight
- 0.76 kg
- Transport Packaging Dimensions Height
- 450 mm
- Transport Packaging Dimensions Width
- 130 mm
- Transport Packaging Dimensions Depth
- 190 mm
- Transport packaging volume
- 11.115 dm³
- Pallet quantity
- 280 pcs
- Customs tariff
- 85389099
5 ETIM
- Mounting method
- Screw-on
- Construction size
- NH00
- Number of poles
- 1
- Connection type
- Screwed terminal
- Rated current
- 160 A
ETIM Classification – Version 9.0
