Fuse bases NV/NH are essential components in low voltage electrical systems, providing a secure and reliable housing for NH fuse links. They serve as the interface between the fuse link and the electrical circuit, ensuring proper connection and protection. Fuse bases are typically designed for surface mounting on mounting plates or DIN rails, allowing for easy installation and integration into distribution boards and panels.

This product is obsolete and does not have a direct substitute, please contact our technical support in order to find a suitable replacement.

001701041 Obsolete

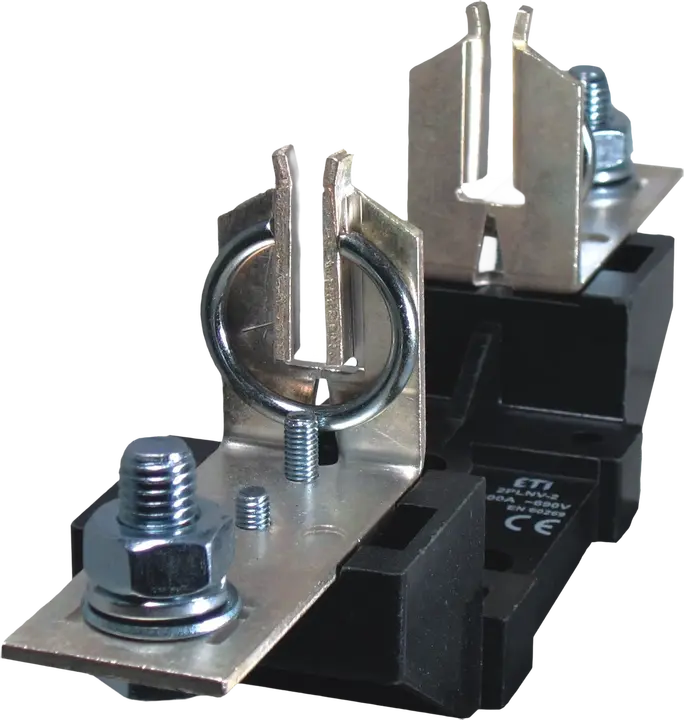

Image of * 2PLNV - 1/1 B

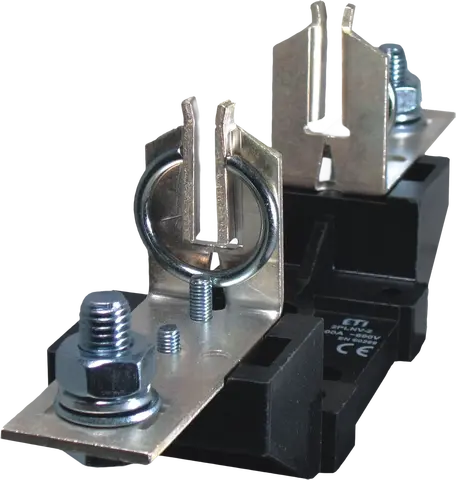

* 2PLNV - 1/1 B Fuse - base

ETI Code:: 001701041
Size:: NH1
Number of poles:: 1
Rated current:: 250 A
Rated AC voltage:: 690 V
Type of Installation:: Base plate mounting

Product

Net weight of the product: 0.33 kg
Stock unit of measure: pcs

Basic Packaging

Basic packaging quantity: 3 pcs
EAN code for a basic packaging: 3838895584582
Basic packaging weight: 2.1 kg
Basic packaging volume: 3.3 dm³

Transport Packaging

Transport packaging quantity: 42 pcs
EAN code for a transport packaging: 3838895584599
Transport packaging weight: 29.4 kg
Transport packaging volume: 46.2 dm³
Pallet quantity: 1,134 pcs
Customs tariff: 85389099

Construction size: NH1
Number of poles: 1
Rated current: 250 A

ETIM Classification – Version 9.0

001701041 Fuse - base * 2PLNV - 1/1 B NV/NH Fuse bases PLNV PLNV 1p 1p International Fuse links NH Fuse bases NH AC Size: NH1 Number of poles: 1 Rated AC voltage: 690 V/690 V Type of Installation: Base plate mounting Rated current: 250 A/250 A Fuse - base TOWAR Number of poles: 1 Size: NH1 Rated current: 250 A/250 A Rated AC voltage: 690 V/690 V
