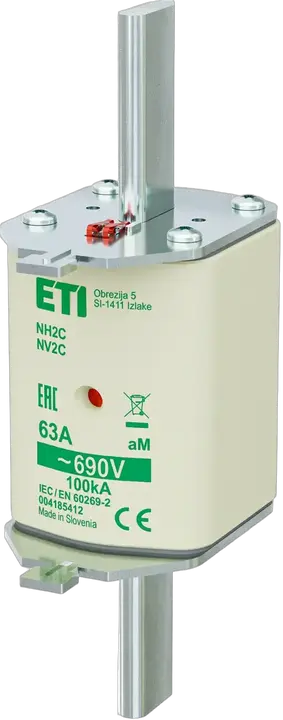

NH2C aM 63A/690V Fuse link

ETI Code:: 004185412
Fuse type:: NH
Size:: NH2C
Rated current:: 63 A
Time-Current Characteristic:: aM
Indicator:: Combination fuse status indicator
Rated AC voltage:: 690 V
Breaking capacity AC:: 100 kA
Power dissipation:: 4.4 W
Prearcing joule integral (A2s):: 14,600
Operating joule integral (A2s):: 44,200
Standards:: VDE 0636-2011
Application:: For relays, contactors and motors protection in case of short-circuit

Accessories

Product

EAN code for a single product: 3838400037619
Net weight of the product: 435 g
Net width: 46 mm
Net height: 150.2 mm
Net depth: 72.5 mm
Stock unit of measure: pcs

Basic Packaging

Basic packaging quantity: 3 pcs
EAN code for a basic packaging: 3838895337218
Basic packaging weight: 1.385 kg
Basic Packaging Dimensions Height: 0.078 m
Basic Packaging Dimensions Width: 0.147 m
Basic Packaging Dimensions Depth: 0.153 m
Basic packaging volume: 0.002 m³

Transport Packaging

Transport packaging quantity: 15 pcs
EAN code for a transport packaging: 3838895337225
Transport packaging weight: 7.275 kg
Transport Packaging Dimensions Height: 0.255 m
Transport Packaging Dimensions Width: 0.295 m
Transport Packaging Dimensions Depth: 0.235 m
Transport packaging volume: 0.018 m³
Pallet quantity: 780 pcs
Customs tariff: 85361050

Rated switching capacity AC: 100 kA
Voltage type: AC
Fuse construction type according to IEC 60269: NH2C
Rated voltage AC: 690
Power loss at rated current: 4.4 W
Type of fuse status indicator: Combination fuse status indicator
Rated current: 63 A
Utilization category: aM (switchgear protection)

ETIM Classification – Version 9.0
