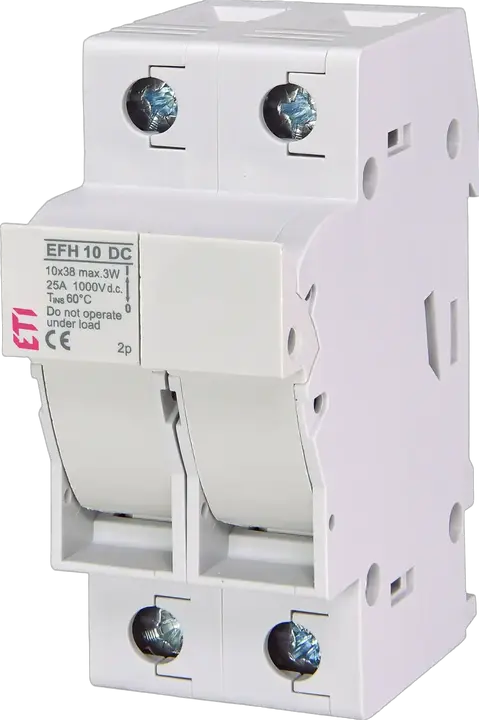

002540203
EFH 10 DC 2p Fuse - base
- ETI Code:
- 002540203
- To use with:
- CH gPV fuse-links
- Product group:
- LV-fuse base
- Catalogue Group:
- LV-fuse disconnector
- Max Permissable Power Dissipation per Fuse Link:
- 3 W
- IP rating:
- IP20
- Type description:
- EFH
- Size:
- 10x38
- Number of poles:
- 2
- Type of Installation:
- DIN rail
- Utilization category:
- DC-20B
- Rated current:
- 25 A
- Rated DC voltage:
- 1000 V
- Standards:
- IEC 60947-1, IEC 60947-3, UL 4248-1, UL 4248-19
- Ambient temperature:
- -5/40 °C
- UL certificate:
- E356295
- Application:
- Photovoltaic Installation
7 Documents
22 Logistics
Product
- EAN code for a single product
- 3838895784609
- Net weight of the product
- 123 g
- Net width
- 35 mm
- Net height
- 82.9 mm
- Net depth
- 64.4 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 6 pcs
- EAN code for a basic packaging
- 3838895712053
- Basic packaging weight
- 0.794 kg
- Basic Packaging Dimensions Height
- 0.077 m
- Basic Packaging Dimensions Width
- 0.09 m
- Basic Packaging Dimensions Depth
- 0.221 m
- Basic packaging volume
- 0.002 m³
Transport Packaging
- Transport packaging quantity
- 54 pcs
- EAN code for a transport packaging
- 3838895712060
- Transport packaging weight
- 7.499 kg
- Transport Packaging Dimensions Height
- 0.25 m
- Transport Packaging Dimensions Width
- 0.235 m
- Transport Packaging Dimensions Depth
- 0.295 m
- Transport packaging volume
- 0.017 m³
- Pallet quantity
- 2,808 pcs
- Customs tariff
- 85389099
4 ETIM
- For fuse size
- 10x38 mm
- Mounting method
- Other
- Nominal voltage
- 1,000 V
- Number of poles
- 2
ETIM Classification – Version 9.0
1 Diagrams
1 Software & drivers
Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
24 Tags
002540203Fuse - baseEFH 10 DC 2pGreen protectEFHEFH 10 DCEFH 10 DC 2pWithout indicatorWithout adapterInternationalFuse links D, D0, CFuse holders for CH DC fuse linksSize: 10x38Type description: EFHApplication: Photovoltaic InstallationUL certificate: E356295Number of poles: 2Ambient temperature: -5 °C/40 °CType of Installation: DIN railStandards: IEC 60947-1, IEC 60947-3, UL 4248-1, UL 4248-19Utilization category: DC-20BRated DC voltage: 1000 V/1000 VRated current: 25 A/25 AFuse - base Size: 10x38 Number of poles: 2 Type of Installation: DIN rail Utilization category: DC-20B Rated current: 25 A/25 A Rated DC voltage: 1000 V/1000 V
Accessories 50 All Accessories
Similar Products 30 All Products
002540201
EFH 10 DC 1p
- Class name
- Fuse - base
- Type description
- EFH
- Size
- 10x38
- Number of poles
- 1
- Type of Installation
- DIN rail
002540211
EFH 10 DC 1p LED
- Class name
- Fuse - base
- Type description
- EFH
- Size
- 10x38
- Number of poles
- 1
- Type of Installation
- DIN rail
002540213
EFH 10 DC 2p LED
- Class name
- Fuse - base
- Type description
- EFH
- Size
- 10x38
- Number of poles
- 2
- Type of Installation
- DIN rail
002540501
EFH 10 DC 1p AD
- Class name
- Fuse - base
- Type description
- EFH
- Size
- 10x38
- Number of poles
- 1
- Type of Installation
- DIN rail
002540503
EFH 10 DC 2p AD
- Class name
- Fuse - base
- Type description
- EFH
- Size
- 10x38
- Number of poles
- 2
- Type of Installation
- DIN rail
002540511
EFH 10 DC 1p LED AD
- Class name
- Fuse - base
- Type description
- EFH
- Size
- 10x38
- Number of poles
- 1
- Type of Installation
- DIN rail
002540513
EFH 10 DC 2p LED AD
- Class name
- Fuse - base
- Type description
- EFH
- Size
- 10x38
- Number of poles
- 2
- Type of Installation
- DIN rail
002550601
PCF 10 DC 1000V 1p
- Class name
- Fuse disconnector
- Type description
- PCF
- Size
- 10x38
- Number of poles
- 1
- Type of Installation
- DIN rail
002550603
PCF 10 DC 1000V 2p
- Class name
- Fuse disconnector
- Type description
- PCF
- Size
- 10x38
- Number of poles
- 2
- Type of Installation
- DIN rail
002550611
PCF 10 DC LED 1000V 1p
- Class name
- Fuse disconnector
- Type description
- PCF
- Size
- 10x38
- Number of poles
- 1
- Type of Installation
- DIN rail

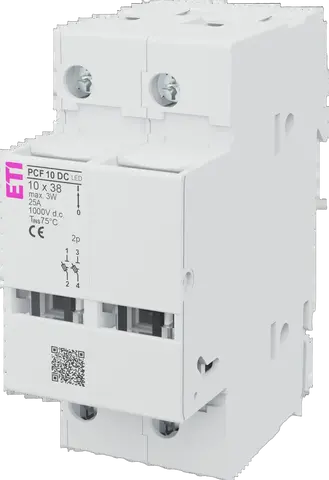

002550613
