002560011

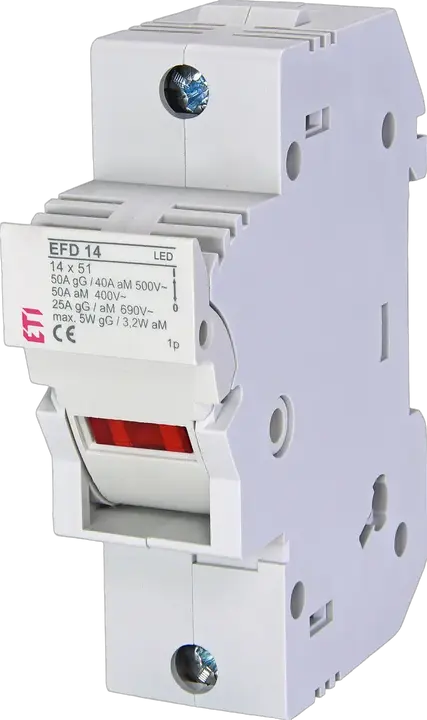

EFD 14 1p LED Fuse disconnector
- ETI Code:
- 002560011
- To use with:
- CH fuse-links
- Product group:
- LV-fuse-switch disconnector
- Catalogue Group:
- LV-fuse-switch disconnector
- Overvoltage Category:
- III
- Type description:
- EFD
- Size:
- 14x51
- Type of Installation:
- DIN rail
- Number of poles:
- 1
- Rated AC voltage:
- 690 V
- Utilization category:
- AC-22B
- Rated current:
- 50 A
- Indicator:
- LED
- Ambient temperature:
- -5/40 °C
- Max Permissable Power Dissipation per Fuse Link:
- 5 W
- Standards:
- IEC60947-1, IEC60947-3
- Application:
- Residential and industrial installation
- IP rating:
- IP20
22 Logistics
Product
- EAN code for a single product
- 3838895745037
- Net weight of the product
- 103 g
- Net width
- 27 mm
- Net height
- 94 mm
- Net depth
- 75.84 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 12 pcs
- EAN code for a basic packaging
- 3838895701286
- Basic packaging weight
- 1.302 kg
- Basic Packaging Dimensions Height
- 0.083 m
- Basic Packaging Dimensions Width
- 0.097 m
- Basic Packaging Dimensions Depth
- 0.327 m
- Basic packaging volume
- 0.003 m³
Transport Packaging
- Transport packaging quantity
- 96 pcs
- EAN code for a transport packaging
- 3838895701293
- Transport packaging weight
- 10.968 kg
- Transport Packaging Dimensions Height
- 0.215 m
- Transport Packaging Dimensions Width
- 0.368 m
- Transport Packaging Dimensions Depth
- 0.368 m
- Transport packaging volume
- 0.029 m³
- Pallet quantity
- 2,304 pcs
- Customs tariff
- 85389099
8 ETIM
- Built-in depth
- 69 mm
- For fuse size
- 14x51 mm
- Degree of protection (IP)
- IP20
- Mounting method
- DIN rail
- Nominal voltage
- 690 V
- Number of poles
- 1
- With optical defect indication
- Yes
- Width in number of modular spacings
- 1.5
ETIM Classification – Version 9.0
