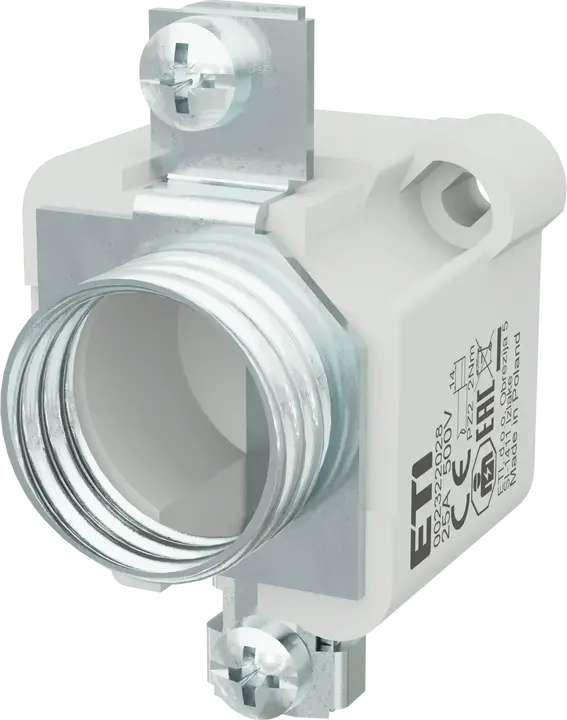

EZV 25 GS Fuse - base
- ETI Code:
- 002322028
- To use with:
- D fuse-links
- Rated DC voltage:
- 500 V
- Product group:
- LV-fuse base
- Catalogue Group:
- LV-fuse base
- Standards:
- IEC60269
- Application:
- Residential and industrial installation
- Type description:
- EZV GS
- Size:
- DII
- Number of poles:
- 1
- Rated current:
- 25 A
- Rated AC voltage:
- 500 V
- Type of Installation:
- Base plate mounting
22 Logistics
Product
- EAN code for a single product
- 3838400029645
- Net weight of the product
- 0.103 kg
- Net width
- 42 mm
- Net height
- 70 mm
- Net depth
- 47.5 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 15 pcs
- EAN code for a basic packaging
- 3838895559405
- Basic packaging weight
- 1.65 kg
- Basic Packaging Dimensions Height
- 0.06 m
- Basic Packaging Dimensions Width
- 0.225 m
- Basic Packaging Dimensions Depth
- 0.22 m
- Basic packaging volume
- 0.003 m³
Transport Packaging
- Transport packaging quantity
- 105 pcs
- EAN code for a transport packaging
- 3838895717447
- Transport packaging weight
- 12.104 kg
- Transport Packaging Dimensions Height
- 0.44 m
- Transport Packaging Dimensions Width
- 0.223 m
- Transport Packaging Dimensions Depth
- 0.223 m
- Transport packaging volume
- 0.022 m³
- Pallet quantity
- 2,520 pcs
- Customs tariff
- 85389099
7 ETIM
- Model
- Fitted screw
- Mounting method
- Bottom mounting
- Construction size
- DII
- Number of poles
- 1
- Rated voltage
- 500 V
- Rated current
- 25 A
- Material
- Porcelain
