002921295

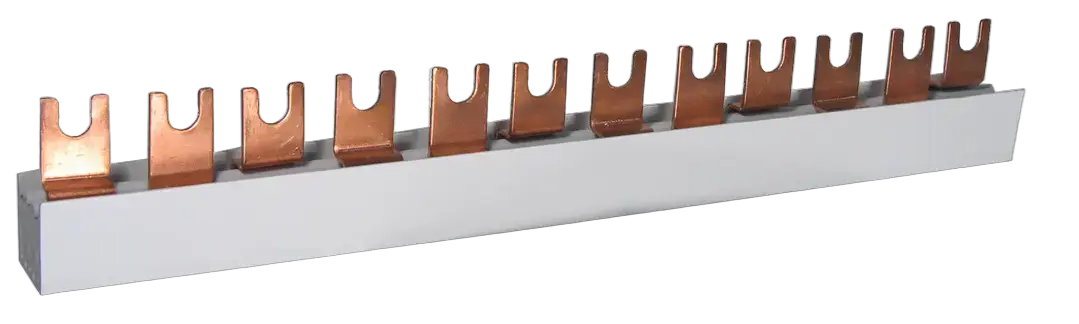

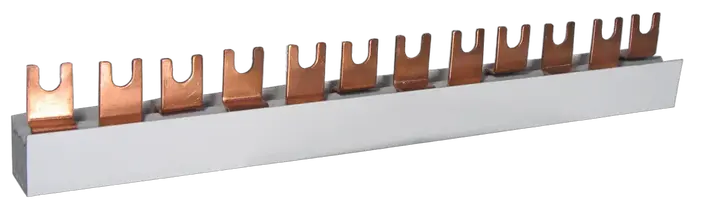

IZ10/4F/18 Cu rail
- ETI Code:
- 002921295
- To use with:

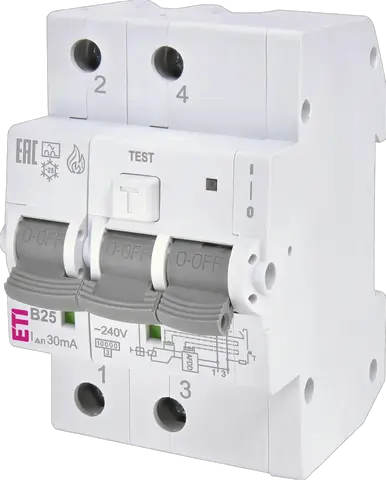

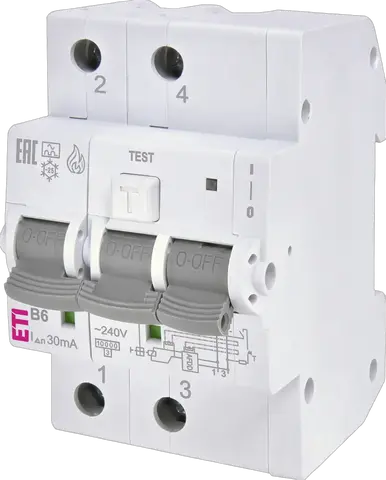

- KZS AFDD
- Catalogue Group:
- IZ Section rails
- Type description:
- Fork Type
- Number of poles:
- 4
- Function:
- Section rails
- Busbar type:
- FORK
- Rated cross section:
- 10 mm²
- Lenght in modules:
- 1x18
- No. Of Phases:
- 4
- Rated AC voltage:
- 500 V
- Rated DC voltage:
- 500 V
- Type accessories:
- Section rails
3 Documents
15 Logistics
Product
- Net weight of the product
- 0.589 kg
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838400077615
- Basic packaging weight
- 0.58 kg
- Basic packaging volume
- 1.1 dm³
Transport Packaging
- Transport packaging quantity
- 10 pcs
- EAN code for a transport packaging
- 3838895878612
- Transport packaging weight
- 5.94 kg
- Transport Packaging Dimensions Height
- 103 mm
- Transport Packaging Dimensions Width
- 1,070 mm
- Transport Packaging Dimensions Depth
- 100 mm
- Transport packaging volume
- 11.021 dm³
- Pallet quantity
- 900 pcs
- Customs tariff
- 85369095
10 ETIM
- Can be cut to size
- Yes
- Cross section
- 10 mm²
- Suitable for devices with N-conductor
- Yes
- Number of phases
- 3
- Suitable for number of devices
- 18
- Module width
- 17.8 mm
- Number of poles
- 4
- Max. rated operation voltage Ue
- 500 V
- Insulated
- Yes
- Width in number of modular spacings
- 18
ETIM Classification – Version 9.0
