002921232

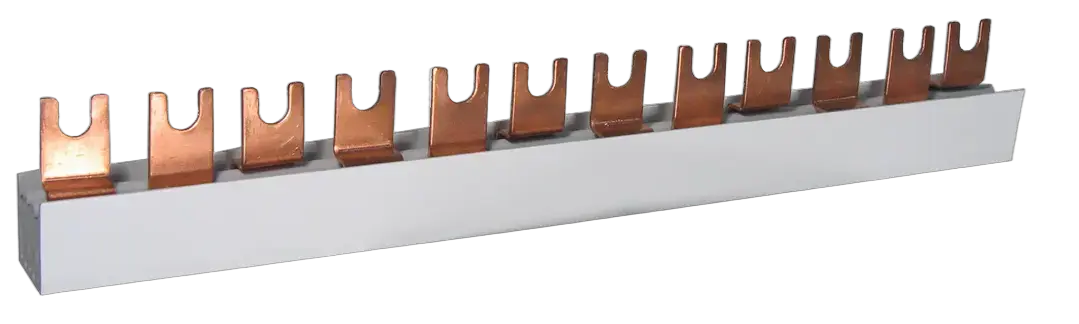

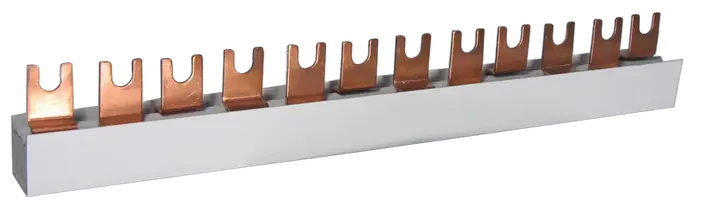

IZ16/4F/56 18mm Cu rail
- ETI Code:
- 002921232
- To use with:
- ETIMAT P10 3P+N
- Catalogue Group:
- IZ Section rails
- Type description:
- Fork type
- Number of poles:
- 4
- Function:
- Section rails
- Busbar type:
- FORK
- Type accessories:
- Cu rail
5 Documents
15 Logistics
Product
- EAN code for a single product
- 3838400077295
- Net weight of the product
- 1.205 kg
- Net width
- 1,010 mm
- Net height
- 31 mm
- Net depth
- 21.33 mm
- Stock unit of measure
- pcs
Transport Packaging
- Transport packaging quantity
- 10 pcs
- EAN code for a transport packaging
- 3838895785125
- Transport packaging weight
- 12.1 kg
- Transport Packaging Dimensions Height
- 1,070 mm
- Transport Packaging Dimensions Width
- 80 mm
- Transport Packaging Dimensions Depth
- 80 mm
- Transport packaging volume
- 6.848 dm³
- Pallet quantity
- 500 pcs
- Customs tariff
- 85369095
3 ETIM
- Suitable for devices with N-conductor
- Yes
- Number of phases
- 3
- Number of poles
- 4
ETIM Classification – Version 9.0
