Section rails, also known as busbars, play a crucial role in modern electrical installations, acting as the backbone for distributing power within panels and enclosures. They offer a safe, efficient, and organized way to connect multiple electrical devices.

002921165

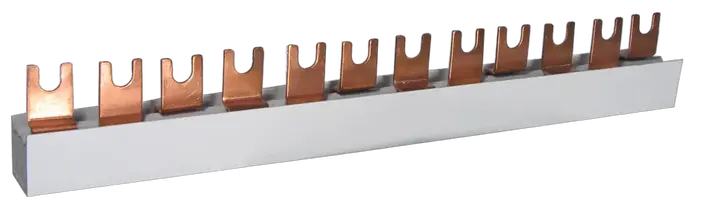

Image of IZ16/3F/12/STV/D

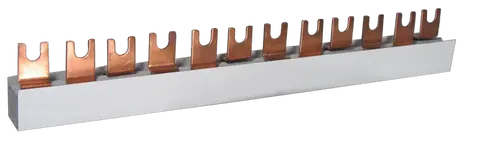

IZ16/3F/12/STV/D Insulated busbar

ETI Code:: 002921165
To use with:: STVD02
Number of poles:: 3
Function:: Section rails
No. Of Phases:: 3

Technical data catalog

Product

Net weight of the product: 0.23 kg
Stock unit of measure: pcs

Basic Packaging

Basic packaging quantity: 20 pcs
EAN code for a basic packaging: 5904723004572
Basic packaging weight: 4.65 kg
Basic packaging volume: 2.8 dm³

Transport Packaging

Transport packaging quantity: 120 pcs
EAN code for a transport packaging: 5904723004589
Transport packaging weight: 27.9 kg
Transport packaging volume: 16.8 dm³
Pallet quantity: 3,600 pcs
Customs tariff: 85389099

Cross section: 16 mm²
Number of phases: 3
Rated permanent current Iu: 100 A
Module width: 27 mm
Length: 210 mm
Insulated: Yes
Type of electric connection: Fork

ETIM Classification – Version 9.0

002921165 Insulated busbar IZ16/3F/12/STV/D ETIBOX Accessories Section rails Section rails Fork type Fork type International Enclosures, distribution boards, equipment ETIBOX Section rails Function: Section rails Number of poles: 3 No. Of Phases: 3 Insulated busbar TOWAR Function: Section rails
