002921155

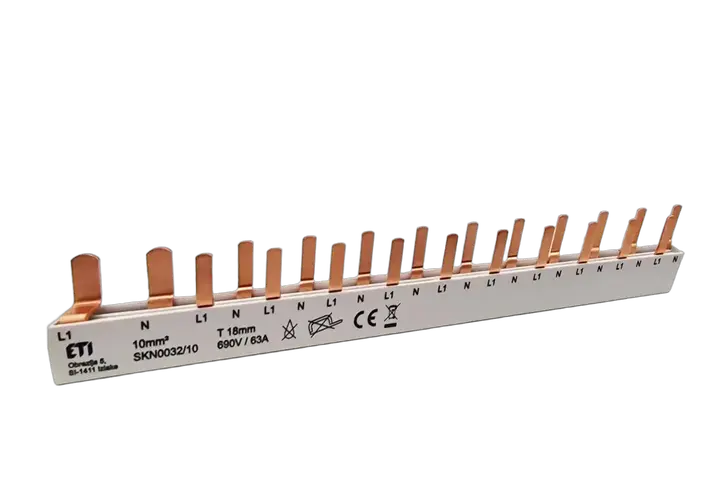

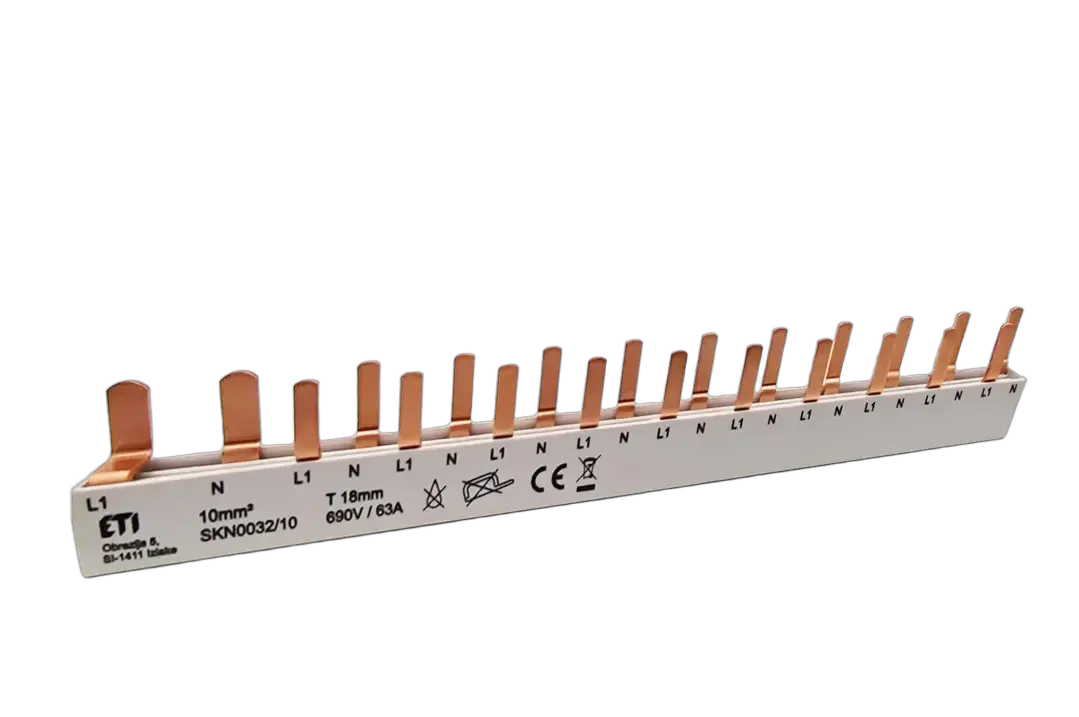

SKN0032/10 Insulated busbar
- ETI Code:
- 002921155
- To use with:
- EFI2+10xETIMAT 1N
- Catalogue Group:
- IZ Section rails
- Type description:
- SKN type
- Function:
- Section rails
- Busbar type:
- SKN
- No. Of Phases:
- 2
- Type accessories:
- Section rails
5 Documents
15 Logistics
Product
- EAN code for a single product
- 3838400077172
- Net weight of the product
- 0.16 kg
- Net width
- 216.3 mm
- Net height
- 27.5 mm
- Net depth
- 10.95 mm
- Stock unit of measure
- pcs
Transport Packaging
- Transport packaging quantity
- 10 pcs
- EAN code for a transport packaging
- 3838895642275
- Transport packaging weight
- 1.65 kg
- Transport Packaging Dimensions Height
- 264 mm
- Transport Packaging Dimensions Width
- 80 mm
- Transport Packaging Dimensions Depth
- 46 mm
- Transport packaging volume
- 0.972 dm³
- Pallet quantity
- 18,370 pcs
- Customs tariff
- 85369040
5 ETIM
- Cross section
- 10 mm²
- Number of phases
- 2
- Rated permanent current Iu
- 63 A
- Insulated
- Yes
- Type of electric connection
- Pin
ETIM Classification – Version 9.0
