002921102

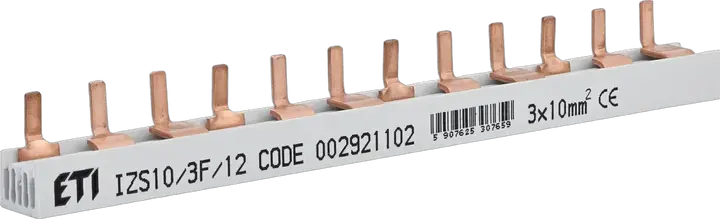

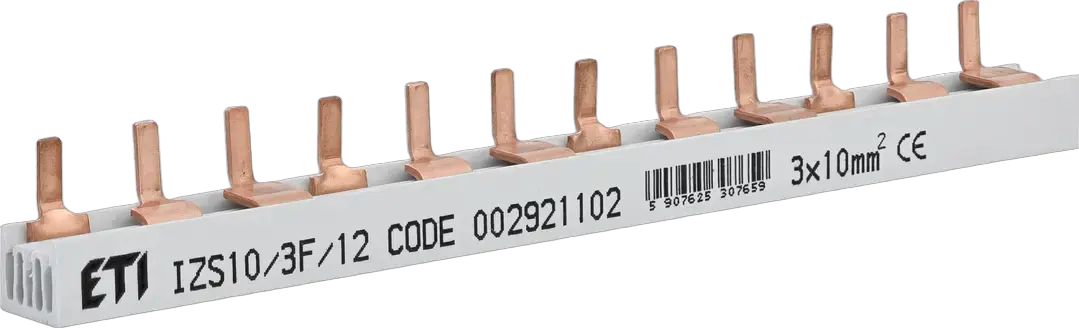

IZS10/3F/12 (0,21) Insulated busbar
- ETI Code:
- 002921102
- To use with:
- ETIMAT 6, ETITEC, SV, VLD01, ETIMAT P10
- Catalogue Group:
- IZ Section rails
- Type description:
- Pin type
- Function:
- Section rails
- Busbar type:
- PIN
- Rated current:
- 63 A
- Rated cross section:
- 10 mm²
- Lenght in modules:
- 1x12
- No. Of Phases:
- 3
- Rated AC voltage:
- 500 V
- Rated DC voltage:
- 500 V
- Type accessories:
- Section rails
5 Documents
16 Logistics
Product
- EAN code for a single product
- 5907625307659
- Net weight of the product
- 0.1 kg
- Net width
- 215 mm
- Net height
- 24.2 mm
- Net depth
- 16.53 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 20 pcs
- EAN code for a basic packaging
- 5907625307673
- Basic packaging weight
- 2 kg
- Basic packaging volume
- 2.2 dm³
Transport Packaging
- Transport packaging quantity
- 240 pcs
- EAN code for a transport packaging
- 5907625307680
- Transport packaging weight
- 24 kg
- Transport packaging volume
- 26.4 dm³
- Pallet quantity
- 7,920 pcs
- Customs tariff
- 85389099
8 ETIM
- Cross section
- 10 mm²
- Number of phases
- 3
- Rated permanent current Iu
- 63 A
- Module width
- 17.8 mm
- Length
- 210 mm
- Max. rated operation voltage Ue
- 500 V
- Insulated
- Yes
- Type of electric connection
- Pin
ETIM Classification – Version 9.0
