003810226

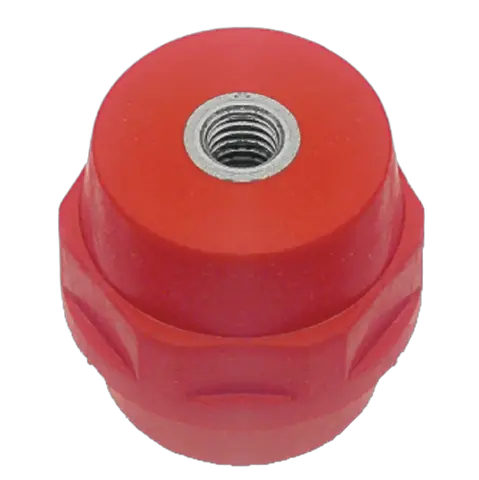

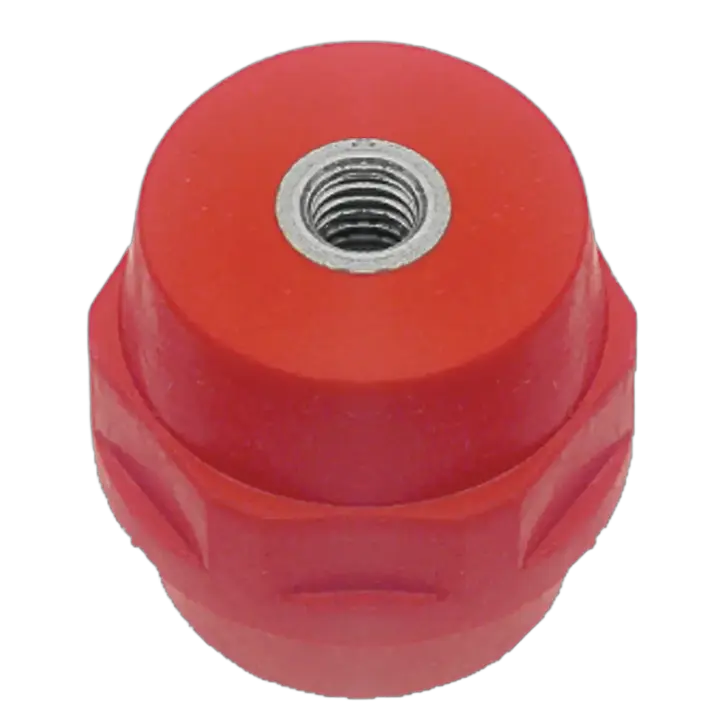

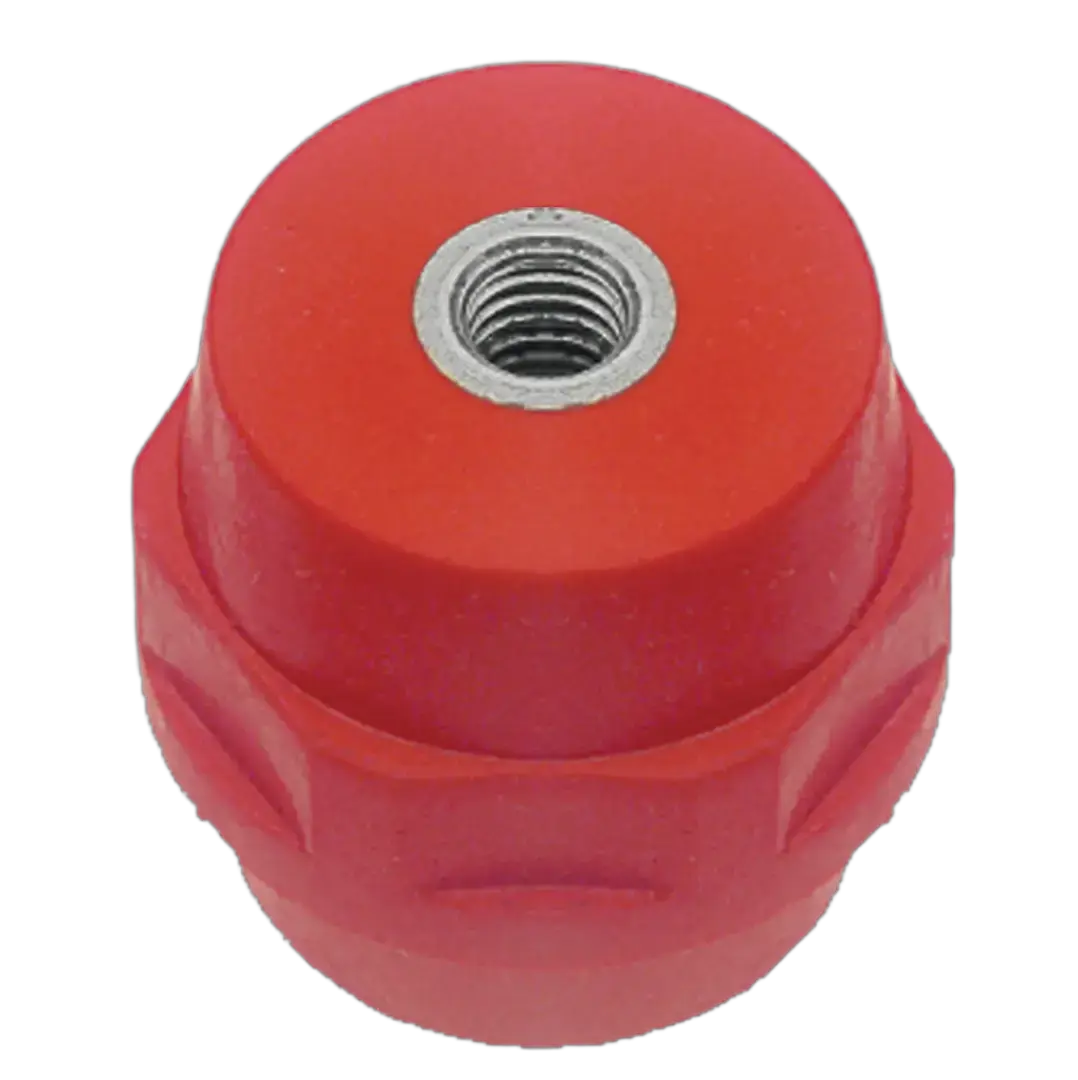

INS 451041 Busbar insulator
- ETI Code:
- 003810226
- Rated DC voltage:
- 1000 V
- Rated AC voltage:
- 1000 V
- Impulse isolation strenght:
- 40 kV
- Working Temperature:
- -20-120 °C
- Material:
- Polyester BMC
- Flammable class:
- V0
- Height:
- 45 mm
- Width:
- 41 mm
4 Documents
12 Logistics
Product
- EAN code for a single product
- 3838895495314
- Net weight of the product
- 0.055 kg
- Stock unit of measure
- pcs
Transport Packaging
- Transport packaging quantity
- 25 pcs
- EAN code for a transport packaging
- 3838895495321
- Transport packaging weight
- 1.138 kg
- Transport Packaging Dimensions Height
- 115 mm
- Transport Packaging Dimensions Width
- 200 mm
- Transport Packaging Dimensions Depth
- 150 mm
- Transport packaging volume
- 3.45 dm³
- Pallet quantity
- 6,400 pcs
- Customs tariff
- 85469010
