003810223

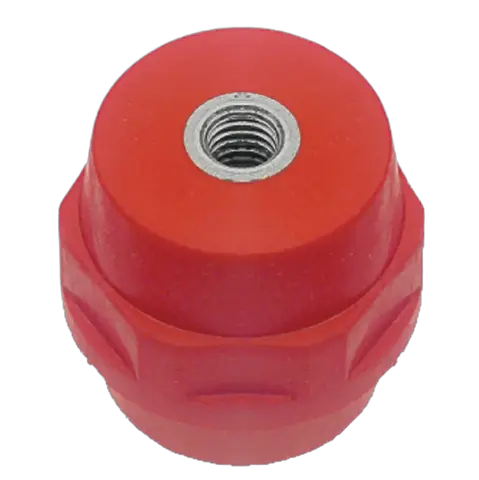

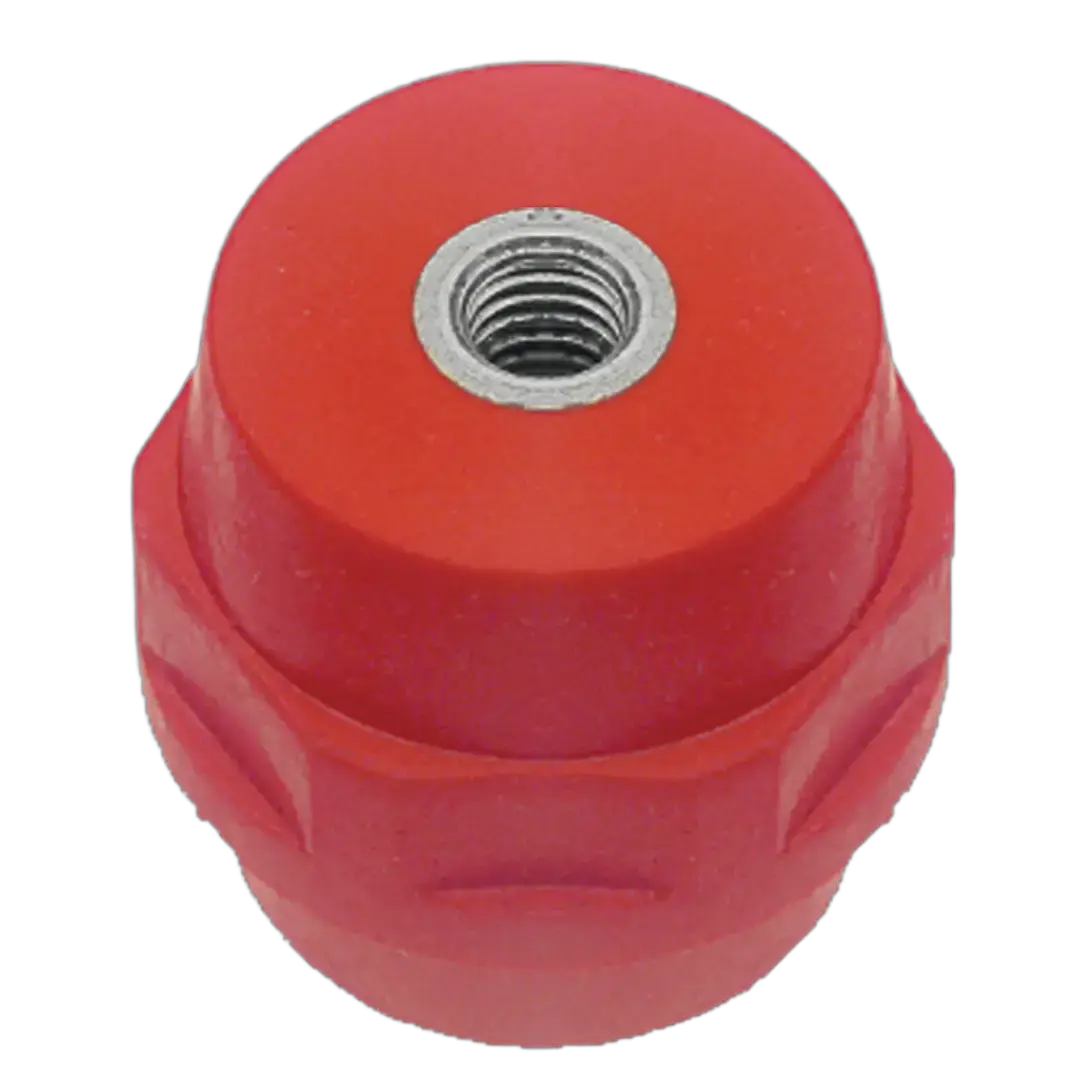

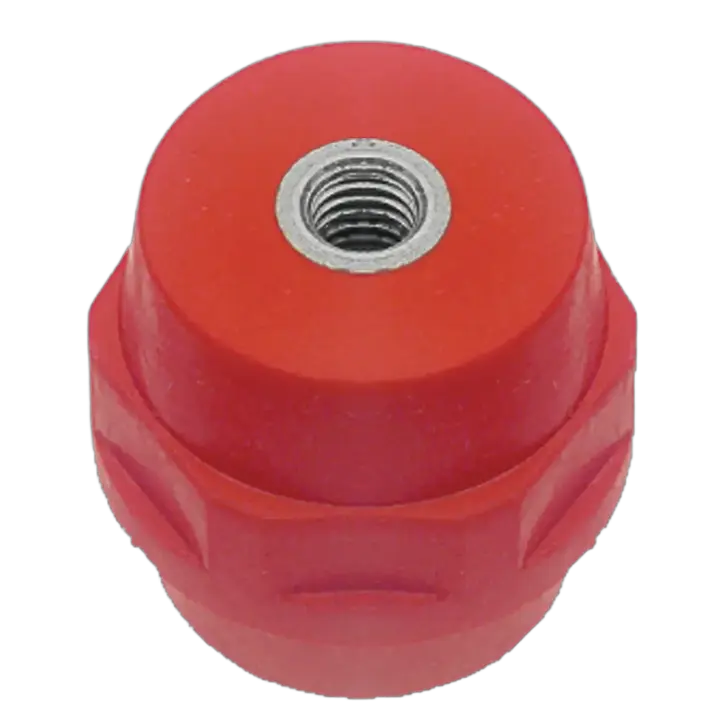

INS 401232 Busbar insulator
- ETI Code:
- 003810223
- Rated DC voltage:
- 1000 V
- Rated AC voltage:
- 1000 V
- Impulse isolation strenght:
- 40 kV
- Working Temperature:
- -20-120 °C
- Material:
- Polyester BMC
- Flammable class:
- V0
- Height:
- 40 mm
- Width:
- 32 mm
4 Documents
13 Logistics
Product
- EAN code for a single product
- 3838895495253
- Net weight of the product
- 0.055 kg
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
Transport Packaging
- Transport packaging quantity
- 25 pcs
- EAN code for a transport packaging
- 3838895495260
- Transport packaging weight
- 1.375 kg
- Transport Packaging Dimensions Height
- 100 mm
- Transport Packaging Dimensions Width
- 270 mm
- Transport Packaging Dimensions Depth
- 260 mm
- Transport packaging volume
- 7.02 dm³
- Pallet quantity
- 3,000 pcs
- Customs tariff
- 85469010
