GSX elements are plug-in brackets, covers, dividers and cable glands that snap into the SOLID GSX enclosures on a 25 mm grid, enabling fast, tool-light panel assembly while preserving the cabinet’s IP and IK ratings.

001101588

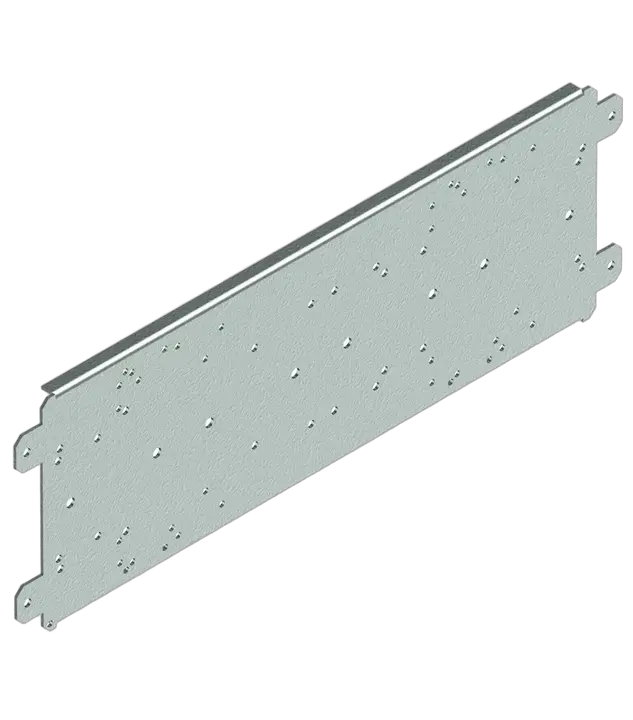

Image of PM 3 E12 L12

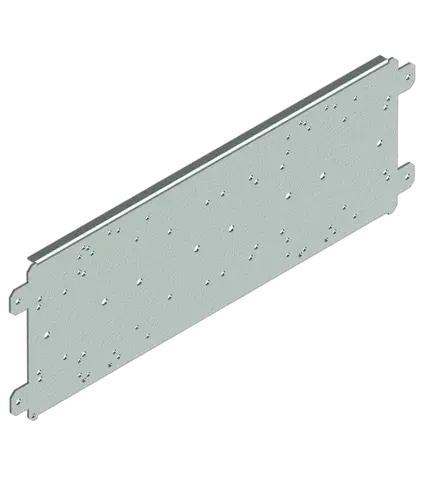

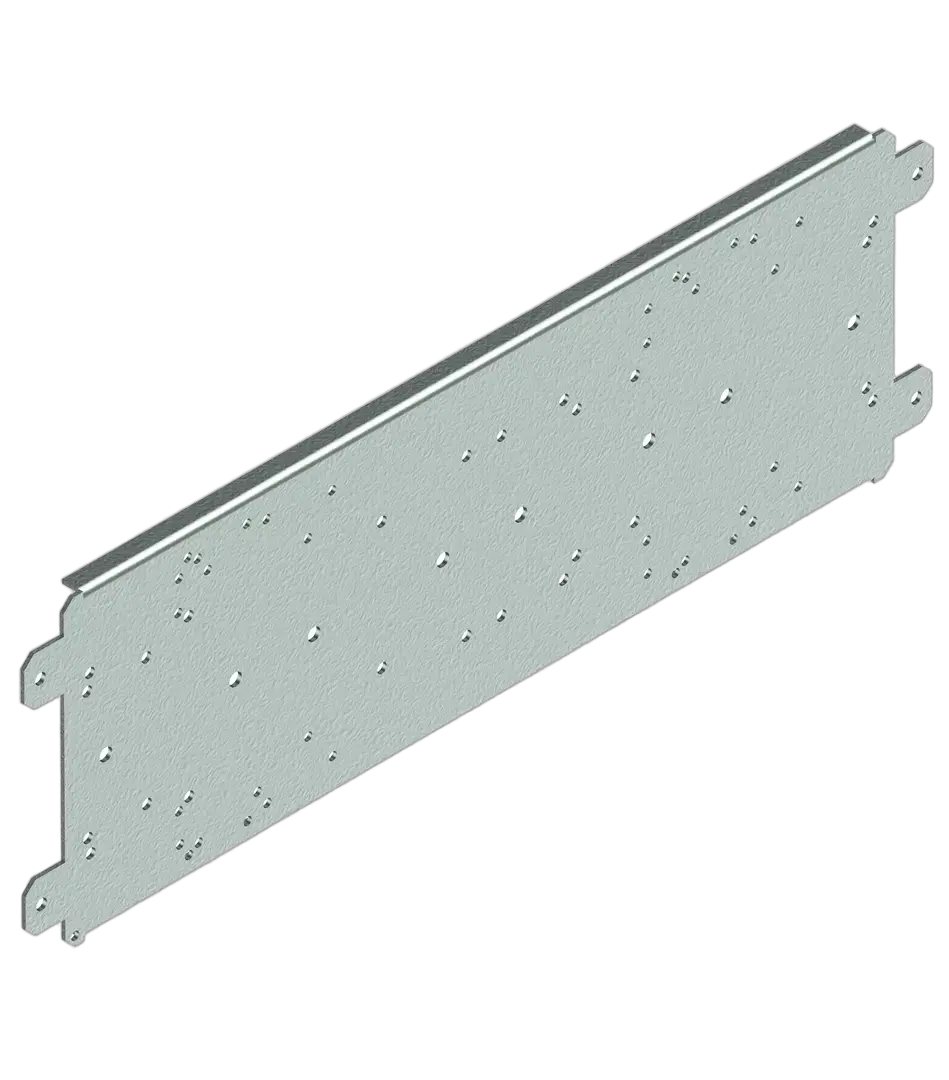

PM 3 E12 L12 Mounting plate

ETI Code:: 001101588
Function:: Internal construction system
To use with:: SOLID GSX system
Installation:: Mounting plates for ED2 / EB2 / LBS disconnectors / MCCBs and modular equipment
Catalogue Group:: SOLID GSX Mounting plates
Product group accessories:: Mounting plates for MCCBs and switch disconnectors up to 250A
Function accessories:: Mounting plate 3xEB2/ED2 125,160,250A 3,4P or 3xLA1,2
Height:: 300 mm
Width:: 750 mm

Accessories

Product

Net weight of the product: 1.818 kg
Net width: 716 mm
Net height: 155 mm
Net depth: 18 mm
Stock unit of measure: pcs

Transport Packaging

Transport packaging quantity: 1 pcs
EAN code for a transport packaging: 5904723020312
Transport packaging weight: 1.85 kg
Transport packaging volume: 1.22 dm³
Pallet quantity: 1,230 pcs
Customs tariff: 85389099

Surface protection: Galvanized
Width: 750 mm
Perforated: ✓
Material: Steel
Height: 300 mm

ETIM Classification – Version 9.0

Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.

001101588 Mounting plate PM 3 E12 L12 ETIBOX1 SOLID GSX INTERNAL STRUCTURAL SYSTEM AND ACCESSORIES Mounting plate for MCCBs/disconnectors EB2/ED2 125,160,250 3, 4P and LA1, LA2 Mounting plate for MCCBs/disconnectors EB2/ED2 125,160,250 3, 4P and LA1, LA2 Mounting plate for MCCBs/disconnectors EB2/ED2 125,160,250 3, 4P and LA1, LA2 International Enclosures, distribution boards, equipment ETIBOX Enclosure system and accessories SOLID GSX GSX system elements Height: 300 mm Function accessories: Mounting plate 3xEB2/ED2 125,160,250A 3,4P or 3xLA1,2 Product group accessories: Mounting plates for MCCBs and switch disconnectors up to 250A Width: 750 mm Catalogue Group: SOLID GSX Mounting plates Mounting plate SOLID Catalogue Group: SOLID GSX Mounting plates Product group accessories: Mounting plates for MCCBs and switch disconnectors up to 250A Function accessories: Mounting plate 3xEB2/ED2 125,160,250A 3,4P or 3xLA1,2 Height: 300 mm Width: 750 mm
