Modular metal enclosures

Introduction

ETI DIDO MB metal distribution boards are designed for electrical distribution in residential and commercial installations. The range includes both flush-mounted MBF and wall-mounted MBW versions, providing different installation options and modular capacities for the installation of protective and control devices. The boards are rated at 400 V AC, provide IP30 protection and IK08 impact resistance, and comply with IEC 60670-1 and IEC 60670-24.

MBF18-8

Class name: Distribution box
Protection Class: I
Rated current: 63 A
Rated AC voltage: 400 V
Rated DC voltage: 400 V
IP rating: IP30
Type of Installation: Flush mounted
No. of modules (total/per row): 144/18
Frame size (Nr. of rows): 8
Enclosure base (material, color): metal, white
Door (material, color): metal, white
Number of PE/N terminals (connections): 15/25

MBF18-7

Class name: Distribution box
Protection Class: I
Rated current: 63 A
Rated AC voltage: 400 V
Rated DC voltage: 400 V
IP rating: IP30
Type of Installation: Flush mounted
No. of modules (total/per row): 126/18
Frame size (Nr. of rows): 7
Enclosure base (material, color): metal, white
Door (material, color): metal, white
Number of PE/N terminals (connections): 15/25

MBF24-7

Class name: Distribution box
Protection Class: I
Rated current: 63 A
Rated AC voltage: 400 V
Rated DC voltage: 400 V
IP rating: IP30
Type of Installation: Flush mounted
No. of modules (total/per row): 168/12
Frame size (Nr. of rows): 7
Enclosure base (material, color): metal, white
Door (material, color): metal, white
Number of PE/N terminals (connections): 4/10

MBF24-8

Class name: Distribution box
Protection Class: I
Rated current: 63 A
Rated AC voltage: 400 V
Rated DC voltage: 400 V
IP rating: IP30
Type of Installation: Flush mounted
No. of modules (total/per row): 192/12
Frame size (Nr. of rows): 8
Enclosure base (material, color): metal, white
Door (material, color): metal, white
Number of PE/N terminals (connections): 4/10

MBF18-1

Class name: Distribution box
Protection Class: I
Rated current: 63 A
Rated AC voltage: 400 V
Rated DC voltage: 400 V
IP rating: IP30
Type of Installation: Flush mounted
No. of modules (total/per row): 18
Frame size (Nr. of rows): 1
Enclosure base (material, color): metal, white
Door (material, color): metal, white
Number of PE/N terminals (connections): 2/10

MBF18-2

Class name: Distribution box
Protection Class: I
Rated current: 63 A
Rated AC voltage: 400 V
Rated DC voltage: 400 V
IP rating: IP30
Type of Installation: Flush mounted
No. of modules (total/per row): 36/18
Frame size (Nr. of rows): 2
Enclosure base (material, color): metal, white
Door (material, color): metal, white
Number of PE/N terminals (connections): 2/10

MBF18-3

Class name: Distribution box
Protection Class: I
Rated current: 63 A
Rated AC voltage: 400 V
Rated DC voltage: 400 V
IP rating: IP30
Type of Installation: Flush mounted
No. of modules (total/per row): 54/18
Frame size (Nr. of rows): 3
Enclosure base (material, color): metal, white
Door (material, color): metal, white
Number of PE/N terminals (connections): 15/25

MBF18-4

Class name: Distribution box
Protection Class: I
Rated current: 63 A
Rated AC voltage: 400 V
Rated DC voltage: 400 V
IP rating: IP30
Type of Installation: Flush mounted
No. of modules (total/per row): 72/18
Frame size (Nr. of rows): 4
Enclosure base (material, color): metal, white
Door (material, color): metal, white
Number of PE/N terminals (connections): 15/25

MBF18-5

Class name: Distribution box
Protection Class: I
Rated current: 63 A
Rated AC voltage: 400 V
Rated DC voltage: 400 V
IP rating: IP30
Type of Installation: Flush mounted
No. of modules (total/per row): 90/18
Frame size (Nr. of rows): 5
Enclosure base (material, color): metal, white
Door (material, color): metal, white
Number of PE/N terminals (connections): 15/25

MBF18-6

Class name: Distribution box
Protection Class: I
Rated current: 63 A
Rated AC voltage: 400 V
Rated DC voltage: 400 V
IP rating: IP30
Type of Installation: Flush mounted
No. of modules (total/per row): 108/18
Frame size (Nr. of rows): 6
Enclosure base (material, color): metal, white
Door (material, color): metal, white
Number of PE/N terminals (connections): 15/25

MBF24-2

Class name: Distribution box
Protection Class: I
Rated current: 63 A
Rated AC voltage: 400 V
Rated DC voltage: 400 V
IP rating: IP30
Type of Installation: Flush mounted
No. of modules (total/per row): 48/12
Frame size (Nr. of rows): 2
Enclosure base (material, color): metal, white
Door (material, color): metal, white
Number of PE/N terminals (connections): 2/10

MBF24-3

Class name: Distribution box
Protection Class: I
Rated current: 63 A
Rated AC voltage: 400 V
Rated DC voltage: 400 V
IP rating: IP30
Type of Installation: Flush mounted
No. of modules (total/per row): 72/12
Frame size (Nr. of rows): 3
Enclosure base (material, color): metal, white
Door (material, color): metal, white
Number of PE/N terminals (connections): 2/10

MBF24-4

Class name: Distribution box
Protection Class: I
Rated current: 63 A
Rated AC voltage: 400 V
Rated DC voltage: 400 V
IP rating: IP30
Type of Installation: Flush mounted
No. of modules (total/per row): 96/12
Frame size (Nr. of rows): 4
Enclosure base (material, color): metal, white
Door (material, color): metal, white
Number of PE/N terminals (connections): 4/10

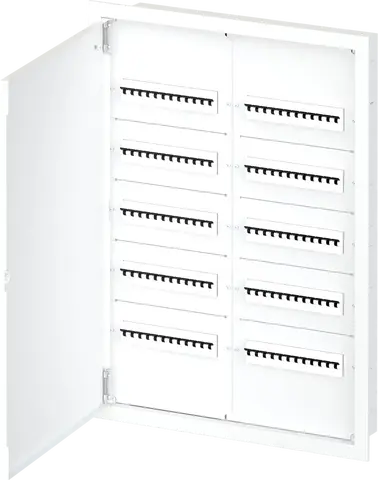

MBF24-5

Class name: Distribution box
Protection Class: I
Rated current: 63 A
Rated AC voltage: 400 V
Rated DC voltage: 400 V
IP rating: IP30
Type of Installation: Flush mounted
No. of modules (total/per row): 120/12
Frame size (Nr. of rows): 5
Enclosure base (material, color): metal, white
Door (material, color): metal, white
Number of PE/N terminals (connections): 4/10

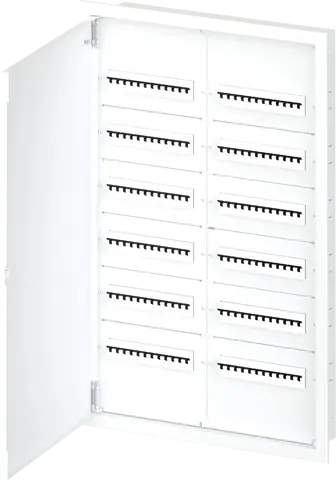

MBF24-6

Class name: Distribution box
Protection Class: I
Rated current: 63 A
Rated AC voltage: 400 V
Rated DC voltage: 400 V
IP rating: IP30
Type of Installation: Flush mounted
No. of modules (total/per row): 144/12
Frame size (Nr. of rows): 6
Enclosure base (material, color): metal, white
Door (material, color): metal, white
Number of PE/N terminals (connections): 4/10

MBW18-8

Class name: Distribution box
Protection Class: I
Rated current: 63 A
Rated AC voltage: 400 V
Rated DC voltage: 400 V
IP rating: IP30
Type of Installation: Surface mounted
No. of modules (total/per row): 144/18
Frame size (Nr. of rows): 8
Enclosure base (material, color): metal, white
Door (material, color): metal, white
Number of PE/N terminals (connections): 15/25

MBW24-8

Class name: Distribution box
Protection Class: I
Rated current: 63 A
Rated AC voltage: 400 V
Rated DC voltage: 400 V
IP rating: IP30
Type of Installation: Surface mounted
No. of modules (total/per row): 192/12
Frame size (Nr. of rows): 8
Enclosure base (material, color): metal, white
Door (material, color): metal, white
Number of PE/N terminals (connections): 4/10

MBW24-7

Class name: Distribution box
Protection Class: I
Rated current: 63 A
Rated AC voltage: 400 V
Rated DC voltage: 400 V
IP rating: IP30
Type of Installation: Surface mounted
No. of modules (total/per row): 168/12
Frame size (Nr. of rows): 7
Enclosure base (material, color): metal, white
Door (material, color): metal, white
Number of PE/N terminals (connections): 4/10

MBW18-7

Class name: Distribution box
Protection Class: I
Rated current: 63 A
Rated AC voltage: 400 V
Rated DC voltage: 400 V
IP rating: IP30
Type of Installation: Surface mounted
No. of modules (total/per row): 126/18
Frame size (Nr. of rows): 7
Enclosure base (material, color): metal, white
Door (material, color): metal, white
Number of PE/N terminals (connections): 15/25

MBW18-1

Class name: Distribution box
Protection Class: I
Rated current: 63 A
Rated AC voltage: 400 V
Rated DC voltage: 400 V
IP rating: IP30
Type of Installation: Surface mounted
No. of modules (total/per row): 18
Frame size (Nr. of rows): 1
Enclosure base (material, color): metal, white
Door (material, color): metal, white
Number of PE/N terminals (connections): 2/10
