001102419
Obsolete

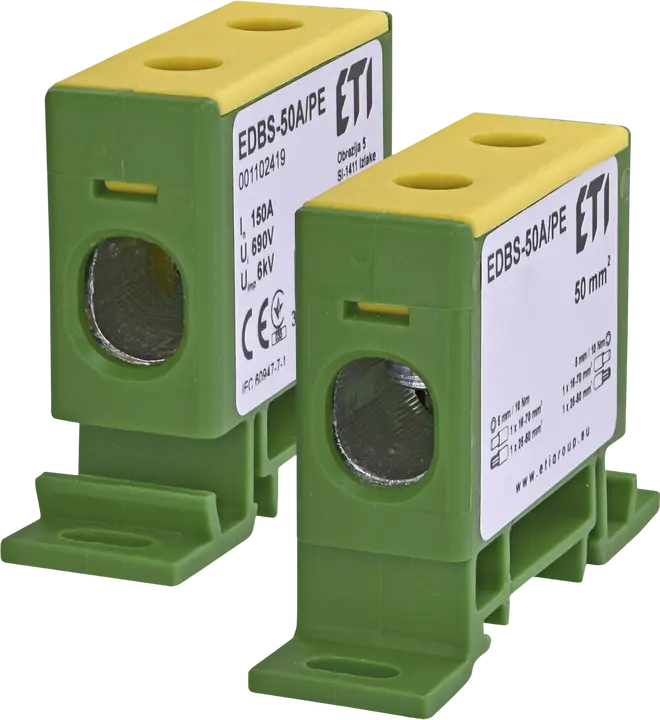

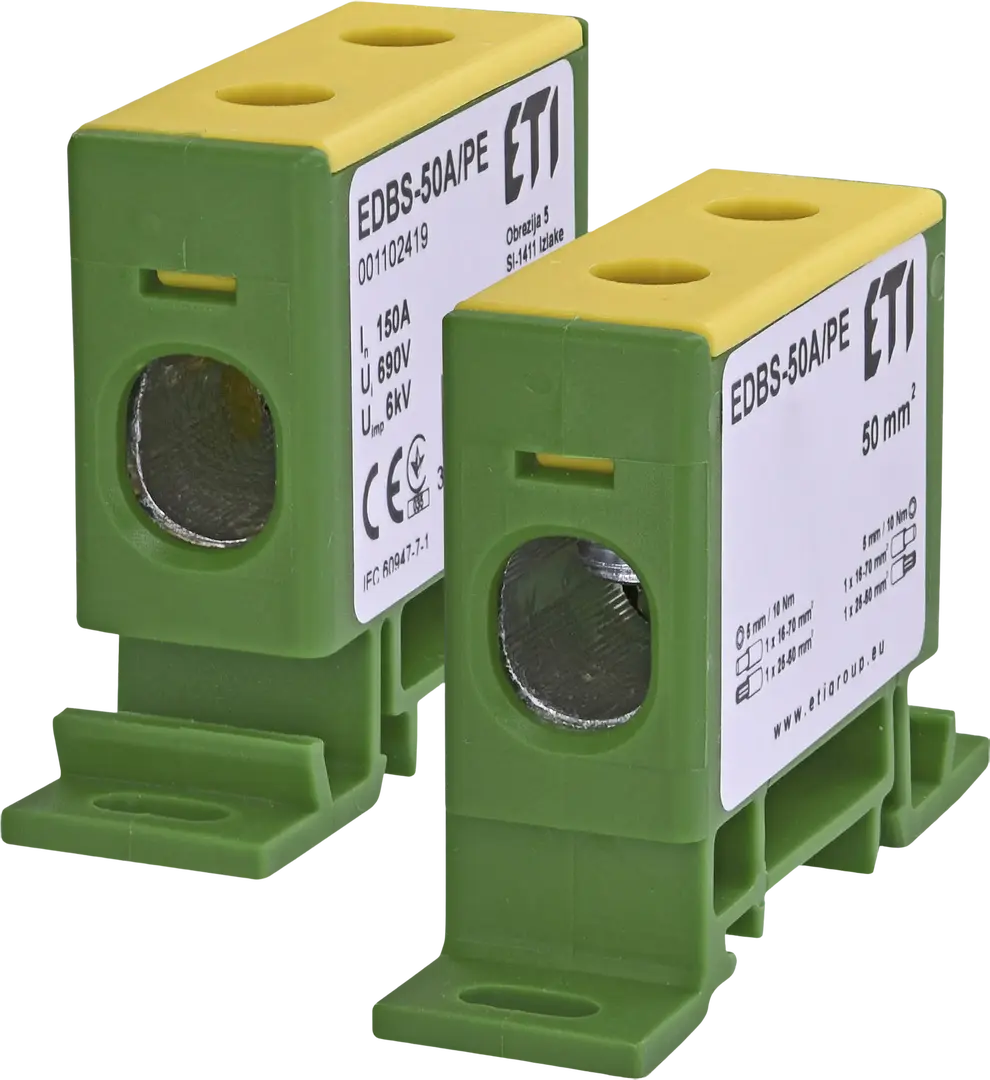

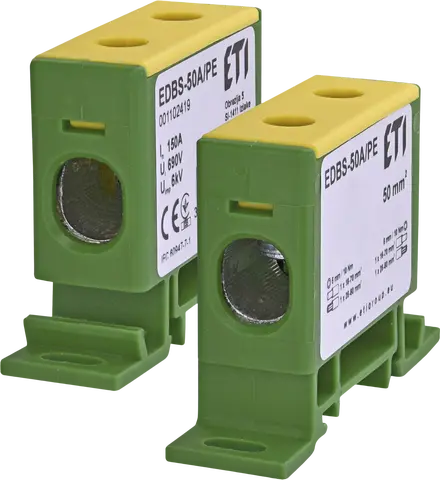

*EDBS-50A/PE Conductor connection clamps
- ETI Code:
- 001102419
- Type accessories:
- EDB DIN rail distribution blocks
- Catalogue Group:
- EDB DIN rail distribution blocks
- Catalogue Subgroup:
- EDBM DIN rail distribution blocks
- Max input cross-section:
- 50 mm²
- Source:
- PE
- Type of Installation:
- TH 35
- Rated current:
- 150 A
- Rated AC voltage:
- 690 V
- Rated DC voltage:
- 690 V
- Rated Insulation Voltage:
- 690 V
- Short circuit capacity:
- 6 kA
- Height:
- 40 mm
- Width:
- 17.8 mm
- Depth:
- 70 mm
- Rated cross section:
- 16-70 mm²
- Body material:
- PA6 GF25
- Clamp material:
- Al6060
4 Documents
16 Logistics
Product
- EAN code for a single product
- 3838895742647
- Net weight of the product
- 0.04 kg
- Net width
- 17.8 mm
- Net height
- 70 mm
- Net depth
- 45 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 10 pcs
- EAN code for a basic packaging
- 3838895741411
- Basic packaging weight
- 0.76 kg
- Basic packaging volume
- 0.44 dm³
Transport Packaging
- Transport packaging quantity
- 200 pcs
- EAN code for a transport packaging
- 3838895741428
- Transport packaging weight
- 15.2 kg
- Transport packaging volume
- 8.8 dm³
- Pallet quantity
- 10,000 pcs
- Customs tariff
- 85369010
14 ETIM
- Width
- 17.8 mm
- Material insulation body
- Thermoplastic
- Rated current In
- 150 A
- Mounting method
- Other
- Type of electrical connection 1
- Screw connection
- Number of poles
- 1
- Number of clamp positions per pole
- 2
- Rated voltage
- 690 V
- Colour
- Green/yellow
- Height
- 40 mm
- Connectable conductor cross section solid-core(Min)
- 16 mm²
- Operating temperature(Min)
- -25 °C
- Connectable conductor cross section solid-core(Max)
- 70 mm²
- Operating temperature(Max)
- 80 °C
ETIM Classification – Version 9.0
