002472051

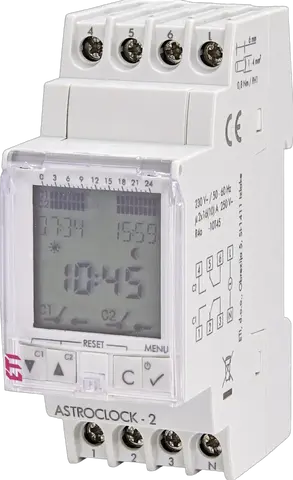

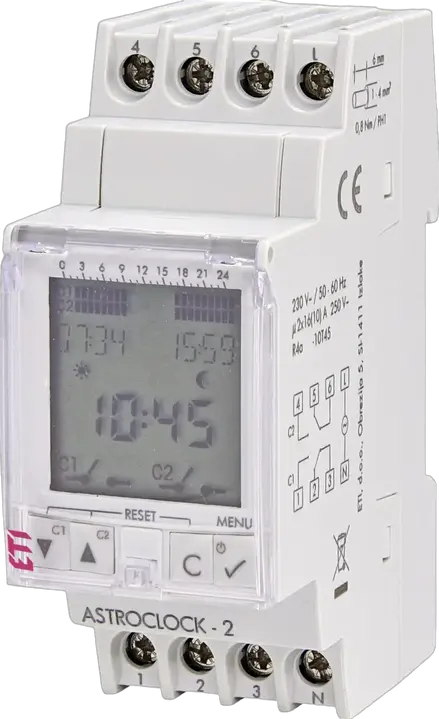

ASTROCLOCK-2 Time relay - digital
- ETI Code:
- 002472051
- Height:
- 90 mm
- Width:
- 355 mm
- Category:
- Astronomical time switch ASTROCLOCK 2
- Catalogue Group:
- Twilight switch & Astronomical time switch
- Catalogue Subgroup:
- Astronomical time switch
- Type of Installation:
- TH 35
- IP rating:
- IP20
- Time range:
- SUNRISE, SUNSET, FIXED TIME: ON/OFF, REDUC.
- Type description:
- Astronomical time switch ASTROCLOCK 2
- Type of contacts:
- 1xCO
- Voltage type:
- AC
- Number of contacts:
- 2
- No. of CO contacts:
- 2
- Function:
- Time relay
- Maximum load capacity at AC1:
- 4,000 VA
- Supply Voltage:
- 230 V
- Rated current:
- 16 A
21 Logistics
Product
- Net weight of the product
- 0.166 kg
- Net width
- 35 mm
- Net height
- 91.2 mm
- Net depth
- 63.32 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838895717874
- Basic packaging weight
- 0.166 kg
- Basic Packaging Dimensions Height
- 95 mm
- Basic Packaging Dimensions Width
- 42 mm
- Basic Packaging Dimensions Depth
- 72 mm
- Basic packaging volume
- 0.287 dm³
Transport Packaging
- Transport packaging quantity
- 10 pcs
- EAN code for a transport packaging
- 3838895717881
- Transport packaging weight
- 1.68 kg
- Transport Packaging Dimensions Height
- 210 mm
- Transport Packaging Dimensions Width
- 150 mm
- Transport Packaging Dimensions Depth
- 160 mm
- Transport packaging volume
- 5.04 dm³
- Pallet quantity
- 1,500 pcs
- Customs tariff
- 85364900
33 ETIM
- Max. switching power LED
- 90 W
- Number of contacts
- 2
- Quartz controlled
- Yes
- Width
- 35.5 mm
- Suitable for manual operation
- Yes
- Number of memory locations
- 40
- Weekly program
- Yes
- Astro program
- Yes
- Number of channels
- 2
- Degree of protection (IP)
- IP20
- Contact type
- Change-over contact (NO/NC)
- Mounting method
- DIN rail
- Automatic switching summer-/winter time
- Yes
- Accuracy per day
- 1 s
- Holiday program
- Yes
- Voltage type (supply voltage)
- AC
- Autonomy in hours
- 48
- Shortest switching time channel 2
- 0.02 min
- Hour meter
- Yes
- 24 h program
- Yes
- Nominal switching current at 250 V AC
- 16 A
- Depth
- 65 mm
- Text guidance in display
- Yes
- Cycle program
- Yes
- Shortest switching time channel 1
- 0.02 min
- Potential free switch contact
- Yes
- Height
- 90 mm
- Width in number of modular spacings
- 2
- 60 min program
- Yes
- Frequency supply voltage(Min)
- 50 Hz
- Supply voltage(Min)
- 230 V
- Frequency supply voltage(Max)
- 50 Hz
- Supply voltage(Max)
- 230 V
ETIM Classification – Version 9.0
2 Diagrams
1 Software & drivers
Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
23 Tags
002472051Time relay - digitalASTROCLOCK-2EVE/ETIRELControl equipmentRelaysRelaysTime switchAstronomical time switchInternationalAutomation, signaling and control devicesTimers and digital time relays ETIRELType of contacts: 1xCONo. of NC contacts: 0Voltage type: ACNumber of contacts: 2No. of CO contacts: 2Function: Time relayMaximum load capacity at AC1: 4000 VANo. of NO contacts: 0Supply Voltage: 230 V-230 VRated current: 16 A/16 ATime relay - digital TOWAR Type of contacts: 1xCO No. of NC contacts: 0 Voltage type: AC Number of contacts: 2 No. of CO contacts: 2 Function: Time relay Maximum load capacity at AC1: 4000 VA No. of NO contacts: 0 Supply Voltage: 230 V-230 V Rated current: 16 A/16 A
