002470005

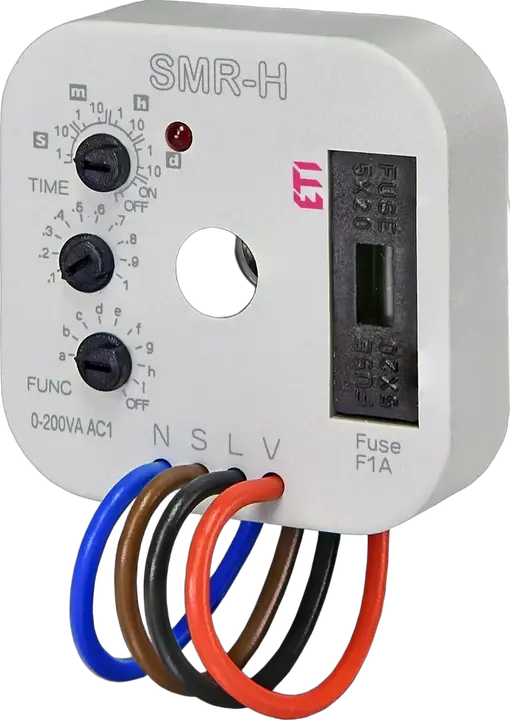

SMR-H Time relay
- ETI Code:
- 002470005
- Height:
- 49 mm
- Width:
- 49 mm
- Category:
- Multifunction relay SMR-T, SMR-H, SMR-B
- Catalogue Group:
- Time relay (Analog)
- Catalogue Subgroup:
- Multifunction relay
- Type of Installation:
- Flush mounting
- Type description:
- Multifunction relay SMR-T, SMR-H, SMR-B
- Type of contacts:
- Triac
- Voltage type:
- AC
- Number of contacts:
- 1
- Function:
- Time relay
- Maximum load capacity at AC1:
- 200 VA
- Supply Voltage:
- 230 V
7 Documents
22 Logistics
Product
- EAN code for a single product
- 5904722928725
- Net weight of the product
- 0.053 kg
- Net width
- 48.7 mm
- Net height
- 55.6 mm
- Net depth
- 19.04 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 8594030338339
- Basic packaging weight
- 0.05 kg
- Basic Packaging Dimensions Height
- 102 mm
- Basic Packaging Dimensions Width
- 82 mm
- Basic Packaging Dimensions Depth
- 39 mm
- Basic packaging volume
- 0.326 dm³
Transport Packaging
- Transport packaging quantity
- 14 pcs
- EAN code for a transport packaging
- 3838895231233
- Transport packaging weight
- 0.737 kg
- Transport Packaging Dimensions Height
- 102 mm
- Transport Packaging Dimensions Width
- 284 mm
- Transport Packaging Dimensions Depth
- 75 mm
- Transport packaging volume
- 2.173 dm³
- Pallet quantity
- 6,440 pcs
- Customs tariff
- 85364900
8 ETIM
- Width
- 49 mm
- Voltage type (operating voltage)
- AC
- Voltage type for actuating
- AC
- Number of outputs, undelayed, normally open contact
- 1
- Depth
- 13.3 mm
- With semiconductor output
- Yes
- Type of electric connection
- Soldering flag connection
- Height
- 49 mm
ETIM Classification – Version 9.0
